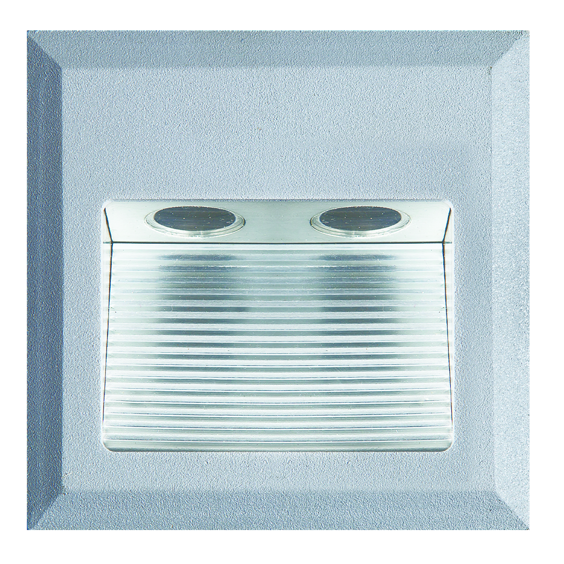

StepSquare
In-Floor Recessed Facade & Landscape Luminary
Optics
Reflector
Luminous Flux
250 lm
Consumption Power
2 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 09
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Facade & Landscape
- Mounting Type In-Floor Recessed
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum
- Optics Reflector
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 09
- Operating Temperature -20°C / +40°C
- Luminous Flux 250 lm
- Consumption Power 2 W
- Luminaire Efficiency 150 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| STP 010 003 002D 8030 10 99 CA 65 00 | 2 | 250 | 4000 | SM° Reflector | 100x100x36 |
|
Download
