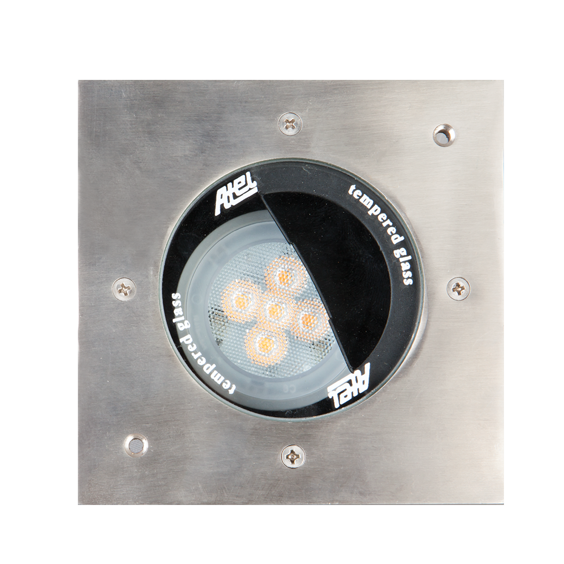

Platz
In-Floor Recessed Facade & Landscape Luminary
Optics
GU10 Led Bulb & 36° Reflector
Luminous Flux
Consumption Power
5 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 09
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Facade & Landscape
- Mounting Type In-Floor Recessed
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum Body Stainless Steel Frame Tempered Glass
- Optics GU10 Led Bulb & 36° Reflector
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 09
- Operating Temperature -20°C / +40°C
- Luminous Flux
- Consumption Power 5 W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- Option On-Off / Dali / 1-10V
Dimensions
Product Variations
| SKU | Product Code | Power (W) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| 72000039 | PLA 010 010 005Z 8030 10 36 AP 65 00 | 5 | 4000 | 36° Reflector | Ø100x100 |
|
Download
