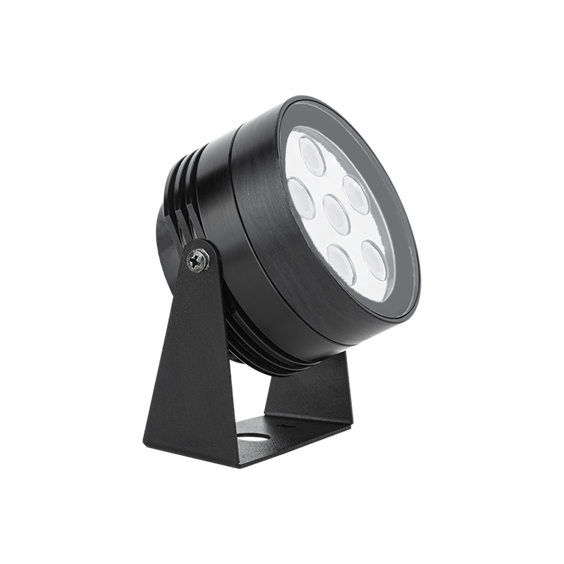

Margarita S
Floor Facade & Landscape Luminary
Optics
15° 40° 90° Lens
Luminous Flux
1040 lm / 1520 lm / 2000 lm
Consumption Power
13 W / 19 W / 25 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 08
70K
Colour Options
RAL 9005
RAL 9016
Product Features
- Luminaire Group Facade & Landscape
- Mounting Type Floor
- Luminary Color RAL 9005 - RAL 9016
- Housing Aluminum Extrusion
- Optics 15° 40° 90° Lens
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 08
- Operating Temperature -20°C / +40°C
- Luminous Flux 1040 lm / 1520 lm / 2000 lm
- Consumption Power 13 W / 19 W / 25 W
- Luminaire Efficiency 80 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours

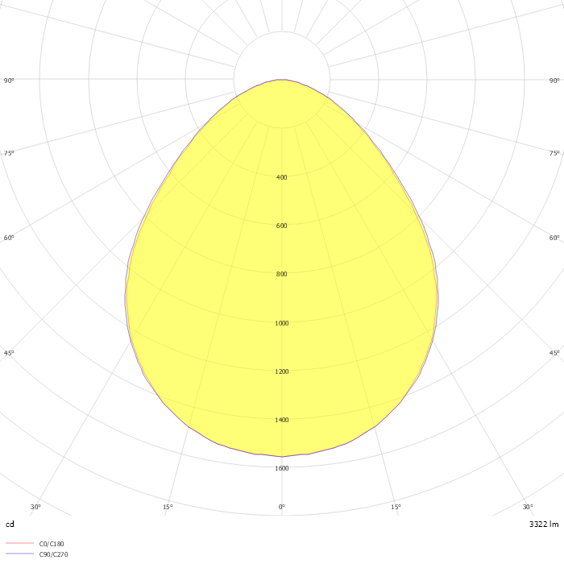

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| MAR 011 009 013K 8030 10 15 LN 65 00 | 13 | 1040 | 4000 | 15° Lens | Ø119 |
|
| MAR 011 009 013K 8030 10 40 LN 65 00 | 13 | 1040 | 4000 | 40° Lens | Ø119 |
|
| MAR 011 009 013K 8030 10 90 LN 65 00 | 13 | 1040 | 4000 | 90° Lens | Ø119 |
|
| MAR 011 009 019K 8030 10 15 LN 65 00 | 19 | 1520 | 4000 | 15° Lens | Ø119 |
|
| MAR 011 009 019K 8030 10 40 LN 65 00 | 19 | 1520 | 4000 | 40° Lens | Ø119 |
|
| MAR 011 009 019K 8030 10 90 LN 65 00 | 19 | 1520 | 4000 | 90° Lens | Ø119 |
|
| MAR 011 009 025K 8030 10 15 LN 65 00 | 25 | 2000 | 4000 | 15° Lens | Ø119 |
|
| MAR 011 009 025K 8030 10 40 LN 65 00 | 25 | 2000 | 4000 | 40° Lens | Ø119 |
|
| MAR 011 009 025K 8030 10 90 LN 65 00 | 25 | 2000 | 4000 | 90° Lens | Ø119 |
|
Download
