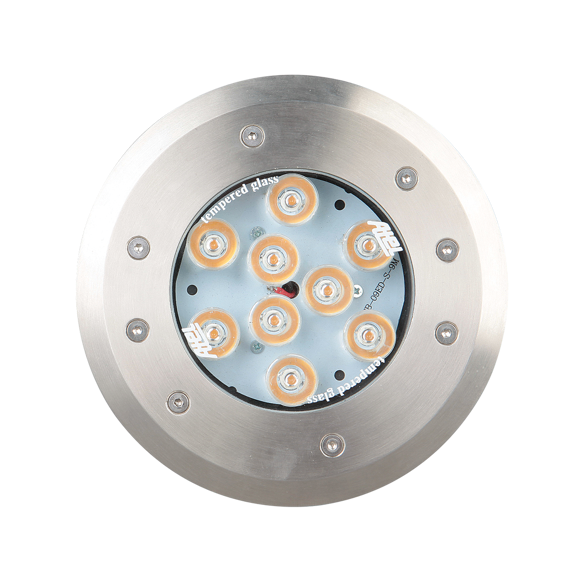

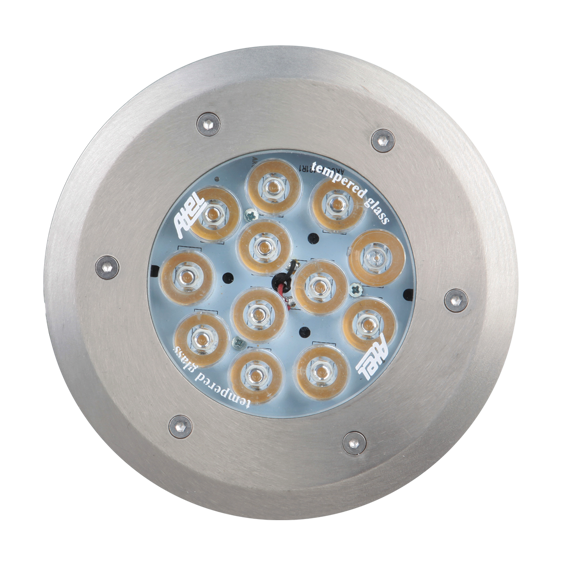

Oculus S & M
In-Floor Recessed Facade & Landscape Luminary
Optics
15° 40° 90° Lens
Luminous Flux
1080 lm / 1440 lm / 720 lm
Consumption Power
12 W / 6 W / 9 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 09
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Facade & Landscape
- Mounting Type In-Floor Recessed
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum Body Stainless Steel Frame Tempered Glass
- Optics 15° 40° 90° Lens
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 09
- Operating Temperature -20°C / +40°C
- Luminous Flux 1080 lm / 1440 lm / 720 lm
- Consumption Power 12 W / 6 W / 9 W
- Luminaire Efficiency 120 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 72000083 | OCU 013 010 006Z 8030 10 15 LN 65 00 | 6 | 720 | 4000 | 15° Lens | Ø65x101 |
|
| 72000095 | OCU 013 010 006Z 8030 10 40 LN 65 00 | 6 | 720 | 4000 | 40° Lens | Ø119 |
|
| OCU 013 010 006Z 8030 10 90 LN 65 00 | 6 | 720 | 4000 | 90° Lens | Ø119 |
|
|
| 72000107 | OCU 016 010 009Z 8030 10 15 LN 65 00 | 9 | 1080 | 4000 | 15° Lens | Ø103x101 |
|
| 72000119 | OCU 016 010 009Z 8030 10 40 LN 65 00 | 9 | 1080 | 4000 | 40° Lens | Ø103x101 |
|
| 72000125 | OCU 016 010 009Z 8030 10 90 LN 65 00 | 9 | 1080 | 4000 | 90° Lens | Ø103x101 |
|
| OCU 016 010 012Z 8030 10 15 LN 65 00 | 12 | 1440 | 4000 | 15° Lens | Ø103x101 |
|
|
| 72000143 | OCU 016 010 012Z 8030 10 40 LN 65 00 | 12 | 1440 | 4000 | 40° Lens | Ø103x101 |
|
| 72000149 | OCU 016 010 012Z 8030 10 90 LN 65 00 | 12 | 1440 | 4000 | 90° Lens | Ø103x101 |
|
