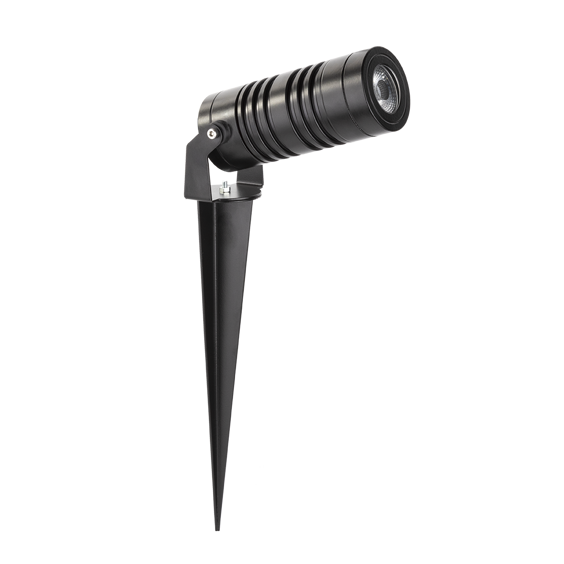

Eye S-M
Pile and Ground Facade & Landscape Luminary
Optics
10° 25° 36° Lens
Luminous Flux
160 lm / 320 lm
Consumption Power
2 W / 4 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 02
70K
Colour Options
RAL 9006
RAL 9005
RAL 9010
Product Features
- Luminaire Group Facade & Landscape
- Mounting Type Pile and Ground
- Luminary Color RAL 9006 - RAL 9005 - RAL 9010
- Housing Aluminum Injection
- Optics 10° 25° 36° Lens
- Light Source LED
- Electrical Protection Class CLASS I
- IP 65
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 160 lm / 320 lm
- Consumption Power 2 W / 4 W
- Luminaire Efficiency 80 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

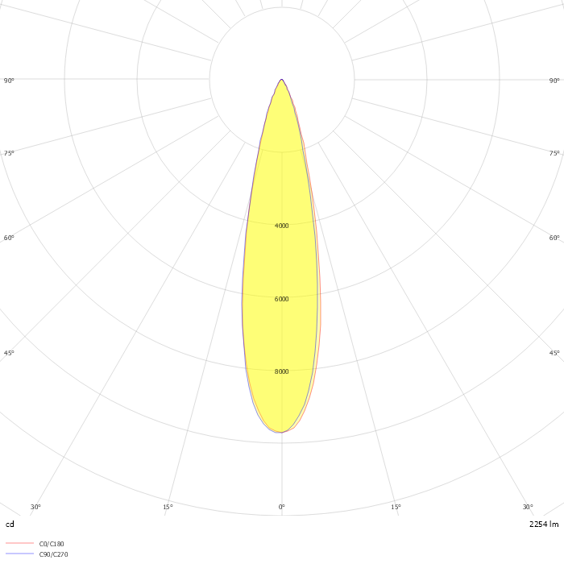

Optics

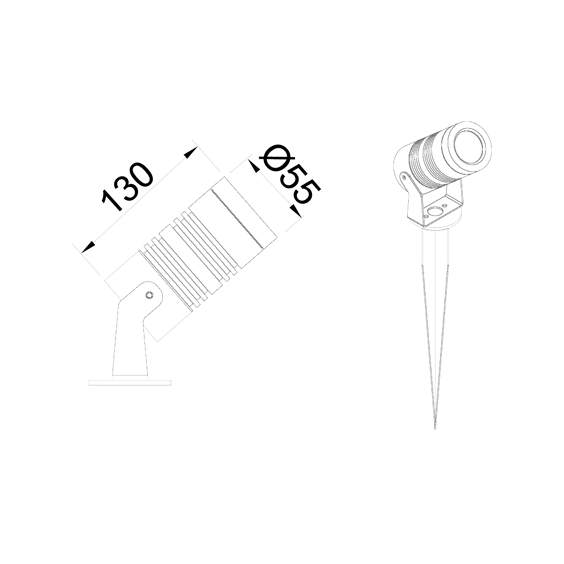

Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 71000003 | EYE 004 009 002K 8030 10 10 LN 65 00 | 2 | 160 | 4000 | 10° Lens | Ø45x99 |
|
| 71000123 | EYE 004 009 002K 8030 10 25 LN 65 00 | 2 | 160 | 4000 | 25° Lens | Ø45x99 |
|
| EYE 004 009 002K 8030 10 36 LN 65 00 | 2 | 160 | 4000 | 36° Lens | Ø45x99 |
|
|
| EYE 005 013 004K 8030 10 10 LN 65 00 | 4 | 320 | 4000 | 10° Lens | Ø55x99 |
|
|
| 71000120 | EYE 005 013 004K 8030 10 25 LN 65 00 | 4 | 320 | 4000 | 25° Lens | Ø55x99 |
|
| 71000101 | EYE 005 013 004K 8030 10 36 LN 65 00 | 4 | 320 | 4000 | 36° Lens | Ø55x99 |
|
