West

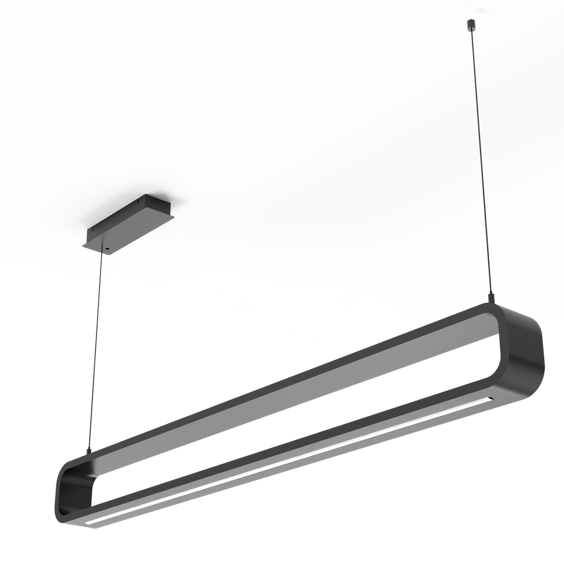

Pendant Luminary

Optics
Diffuser Direct+Indirect

Luminous Flux
4800 lm

Consumption Power
60 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 20 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Pendant
  • Mounting Type Pendant
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing Dkp Sheet
  • Optics Diffuser Direct+Indirect
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 4800 lm
  • Consumption Power 60 W
  • Luminaire Efficiency 80 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

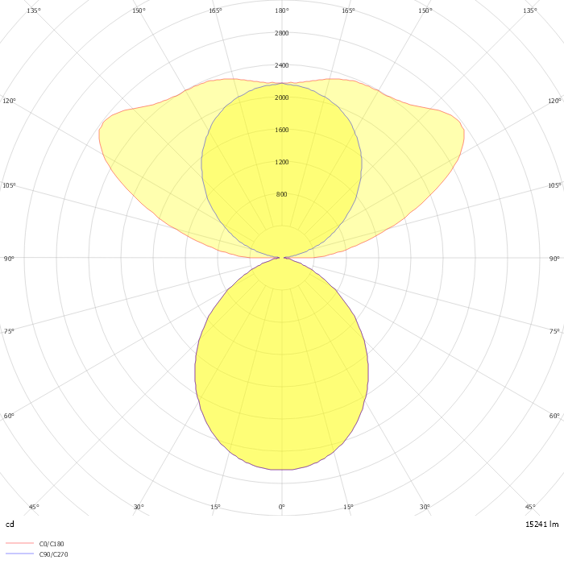

Optics
Direkt+Endirekt
Dimensions
West Teknik (1)
Product Variations
SKU Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
19000371 WES 130 013 030P 8040 10 99 OP 20 00 60 4800 4000 120° Diffuser 1300x137x40 Datasheet
Download
