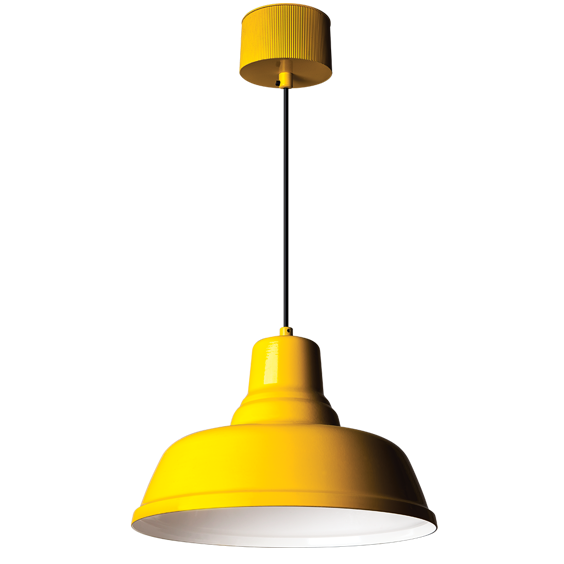

Jumbo 1080X1080

Jumbo

Pendant Luminary

Optics
Reflective Body & Glass

Luminous Flux
3380 lm / 4500 lm

Consumption Power
26 W / 33 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 20 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Pendant
  • Mounting Type Pendant
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing Aluminum
  • Optics Reflective Body & Glass
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 3380 lm / 4500 lm
  • Consumption Power 26 W / 33 W
  • Luminaire Efficiency 130 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

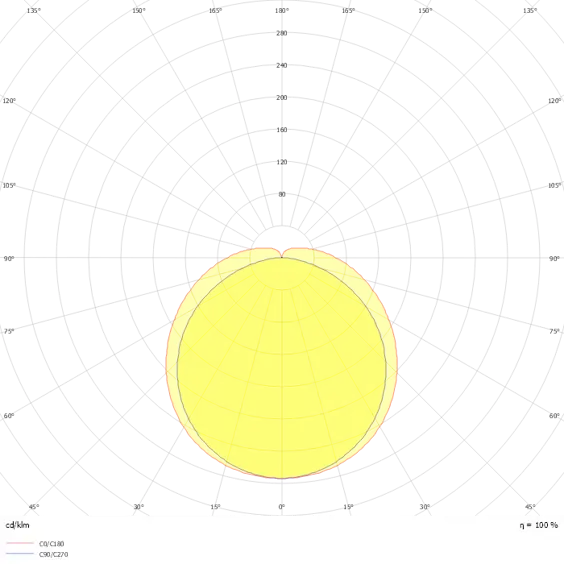

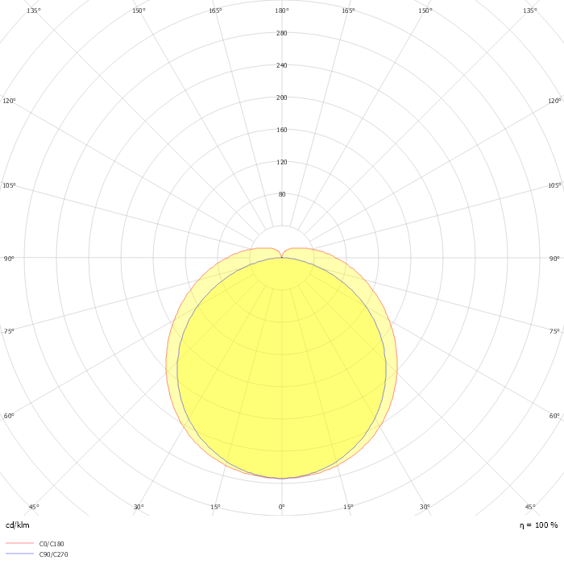

Optics
130º
Dimensions
Jumbo Teknik (1)
Product Variations
SKU Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
JMB 033 021 026P 8040 10 99 CA 20 00 26 3380 4000 130° Glass Ø330x210 Datasheet
19000383 JMB 033 021 033P 8040 10 99 CA 20 00 33 4500 4000 130° Glass Ø330x210 Datasheet
