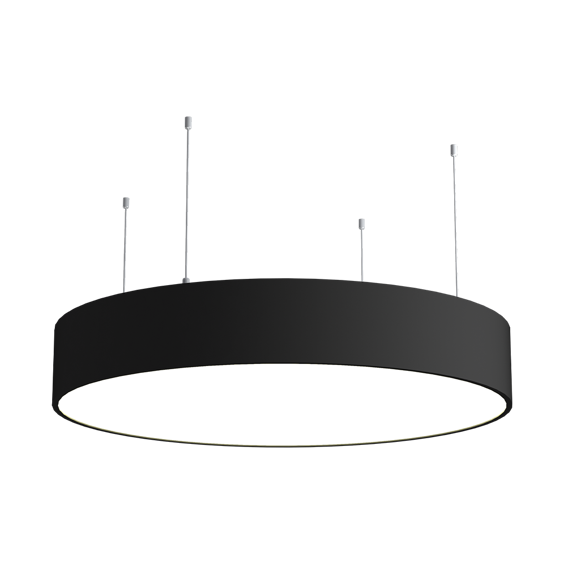

Drums 1080X1080

Drums

Pendant Luminary

Optics
Opal Diffuser

Luminous Flux
13095 lm / 16320 lm / 22850 lm / 4370 lm / 6195 lm

Consumption Power
120 W / 150 W / 40 W / 51 W / 96 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 02 50KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Pendant
  • Mounting Type Pendant
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing Aluminum Extrusion
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 13095 lm / 16320 lm / 22850 lm / 4370 lm / 6195 lm
  • Consumption Power 120 W / 150 W / 40 W / 51 W / 96 W
  • Luminaire Efficiency 124,5 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >50.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
110º
Dimensions
Drums 400 (1)Drums 350 (1)Drums 300 (1)Drums 900 (1)Drums 1200 (1)Drums 600 (1)
Previous
Previous
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet LDT
DIS 001 060 014P 8040 10 99 OP 20 00 40 4370 4000 120° Opal Diffuser Ø50 Datasheet LDT
DRM 060 008 048P 8040 10 99 OP 40 00 51 6195 4000 120° Opal Diffuser Ø60 Datasheet LDT
DRM 090 008 109P 8040 10 99 OP 40 00 96 13095 4000 120° Opal Diffuser Ø90 Datasheet LDT
DRM 120 008 150P 8040 10 99 OP 40 00 120 16320 4000 120° Opal Diffuser Ø120 Datasheet LDT
DRM 150 008 180P 8040 10 99 OP 40 00 150 22850 4000 120° Reflector Ø150 Datasheet
