Dimple Drums Sarkıt 1080X1080

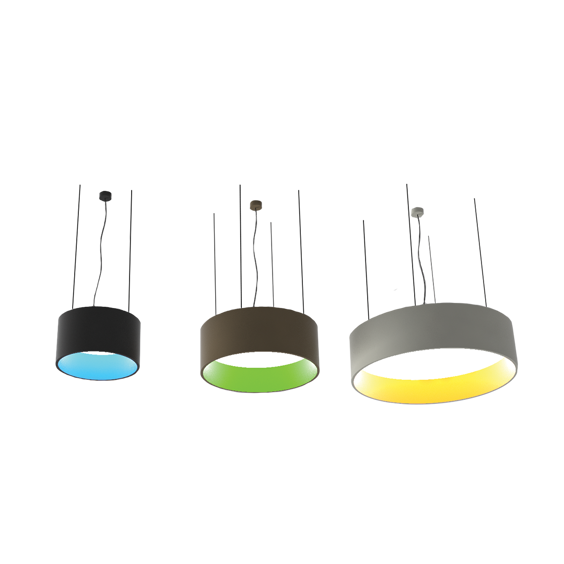

Dimple Drums Pendant

Pendant Luminary

Optics
Opal Diffuser

Luminous Flux
2160 lm / 3650 lm / 4730 lm / 6290 lm

Consumption Power
20 W / 25 W / 35 W / 48 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 40 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Pendant
  • Mounting Type Pendant
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing Dkp Sheet
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 40
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 2160 lm / 3650 lm / 4730 lm / 6290 lm
  • Consumption Power 20 W / 25 W / 35 W / 48 W
  • Luminaire Efficiency 108 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

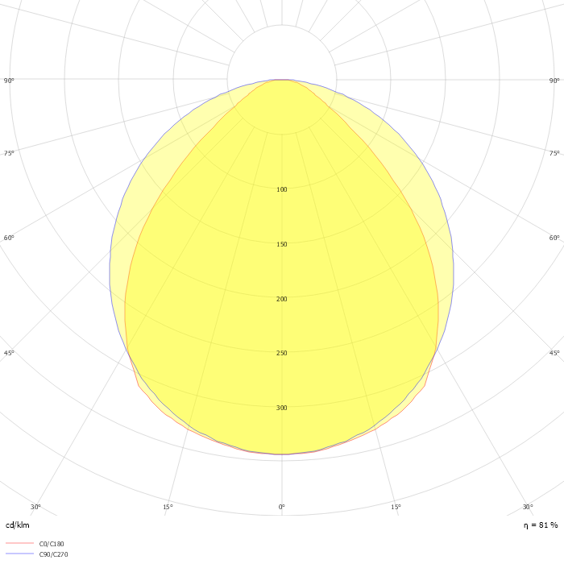

Optics
110º
Dimensions
Dimple Drums 650 (1)Dimple Drums 450 (1)Dimple Drums 910 (1)
Previous
Previous
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
DDR 035 025 020P 9040 10 99 OP 40 00 20 2160 4000 120° Diffuser Ø350x250 Datasheet
DDR 050 025 025P 9040 10 99 OP 40 00 25 3650 4000 120° Diffuser Ø500x250 Datasheet
DDR 060 025 035P 9040 10 99 OP 40 00 35 4730 4000 120° Diffuser Ø600x250 Datasheet
DDR 080 025 048P 9040 10 99 OP 40 00 48 6290 4000 120° Diffuser Ø900x250 Datasheet
Download
