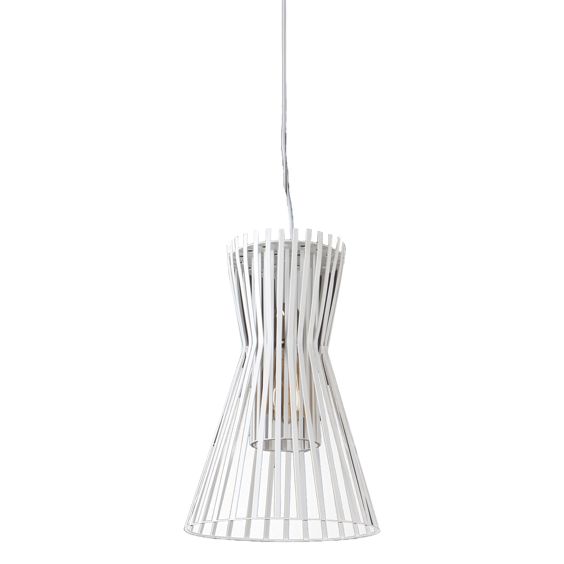

Coolie S & M & L
Pendant Luminary
Optics
E27 Headlight
Luminous Flux
Consumption Power
150 W / 26 W / 33 W
Light Color Temperature (CCT)
220V 240V
IP 20
IK 02
16K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Pendant
- Mounting Type Pendant
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing DKP Sheet
- Optics E27 Headlight
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux
- Consumption Power 150 W / 26 W / 33 W
- Luminaire Efficiency lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT)
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >16.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Dimensions
Product Variations
| SKU | Product Code | Power (W) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| 19000173 | COL 019 029 150P 0040 10 99 AP 40 00 | 150 | 4000 | E27 | Ø190x295 |
|
| 19000181 | COL 023 035 150P 0040 10 99 AP 40 00 | 26 | 4000 | E27 | Ø230x355 |
|
| 19000189 | COL 027 041 150P 0040 10 99 AP 40 00 | 33 | 4000 | E27 | Ø230x355 |
|
