Tha 1080X1080

Thai

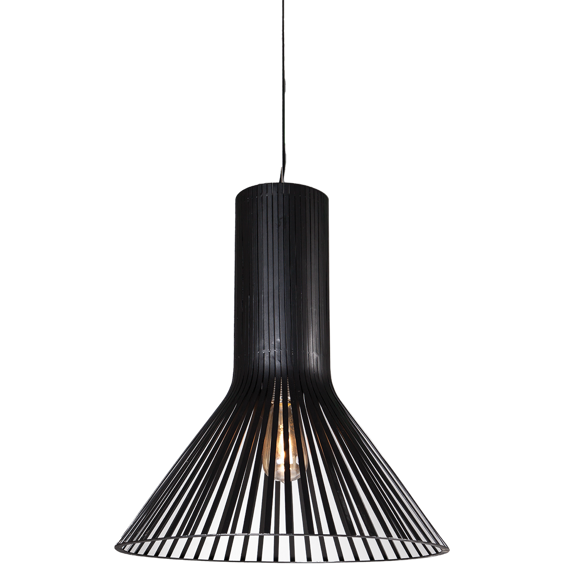

Pendant Luminary

Optics
Bulb

Luminous Flux

Consumption Power
150 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Indoor CB Tse Enec 220V 240V IP 20 IK 02 50KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Pendant
  • Mounting Type Pendant
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing Dkp Sheet
  • Optics Bulb
  • Light Source E27 Halogen Bulb
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux
  • Consumption Power 150 W
  • Luminaire Efficiency lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >50.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit
Dimensions
Thai Teknik (1)
Product Variations
SKU Product Code Power (W) CCT (K) Optics Dimensions (mm) Datasheet
19000197 RDL 033 024 033P 8040 10 99 CA 20 00 150 4000 130° Bulb Ø490x515 Datasheet
Download
