Exit

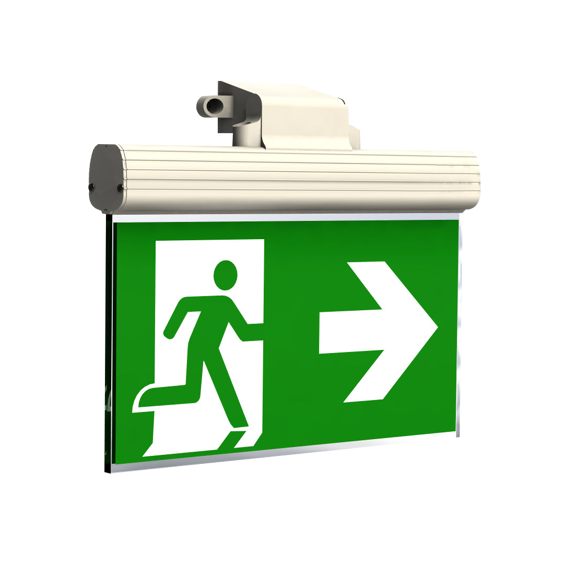

Surface Mounted Emergency and Routing Luminary
Optics
Plexiglas & Flag
Luminous Flux
180 lm
Consumption Power
2 W
Light Color Temperature (CCT)
6500K
Emergency Working Time
1 - 3 hours
220V 240V
IP 40
IK 02
70K
Product Features
- Luminaire Group Emergency and Routing
- Mounting Type Surface Mounted
- Housing Plexiglas
- Optics Plexiglas & Flag
- Light Source LED
- Electrical Protection Class CLASS I
- IP 40
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 180 lm
- Consumption Power 2 W
- Luminaire Efficiency 80 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option 1 Hour - 3 Hours / Dali

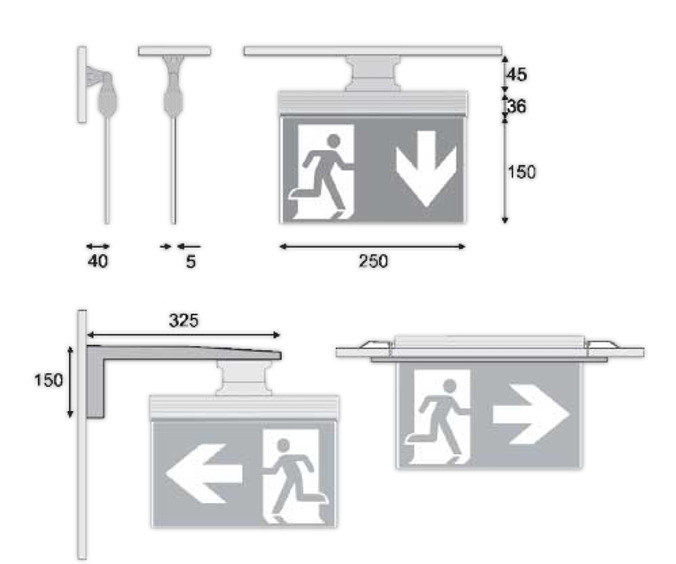

Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| EXT 025 015 02S 8065 11 99 SD 40 00 | 2 | 180 | 4000 | 360° Plexiglas | 250X150 |
|
| EXT 025 015 02S 8065 13 99 SD 40 00 | 2 | 180 | 4000 | 360° Plexiglas | 250X150 |
|
Download
