Tracled

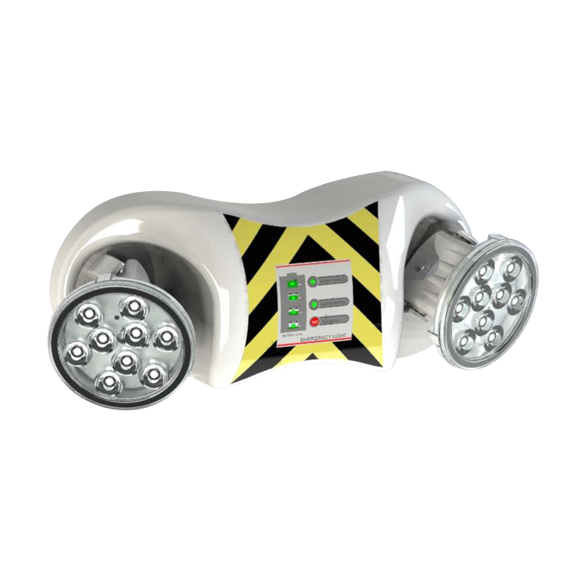

Surface Mounted Emergency and Routing Luminary
Optics
Movable Body
Luminous Flux
1100 lm
Consumption Power
3 W
Light Color Temperature (CCT)
6500K
220V 240V
IP 40
IK 02
50K
Product Features
- Luminaire Group Emergency and Routing
- Mounting Type Surface Mounted
- Housing ABS Body
- Optics Movable Body
- Light Source Led Bulb with 45º Lens
- Electrical Protection Class CLASS II
- IP 40
- IK 02
- Operating Temperature -10°C / +45°C
- Luminous Flux 1100 lm
- Consumption Power 3 W
- Luminaire Efficiency 91,5 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >50.000 hours
- Option 3 Hours - 5 Hours

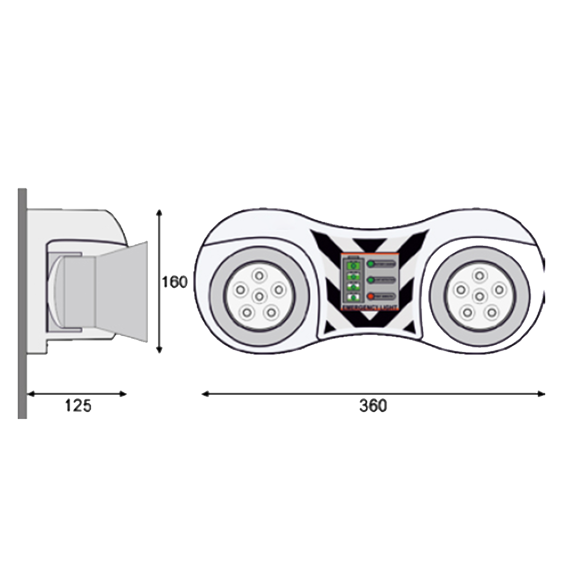

Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| TRL 036 012 012A 8065 13 45 LN 65 00 3S | 3 | 1100 | 4000 | 45° LED Bulb | 268x141x41 |
|
