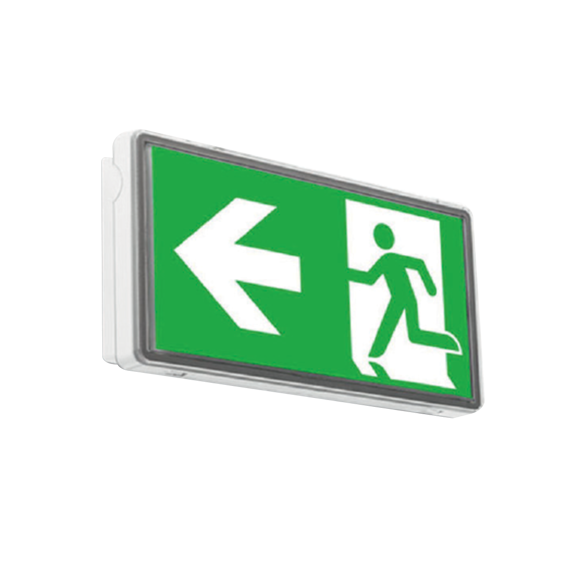

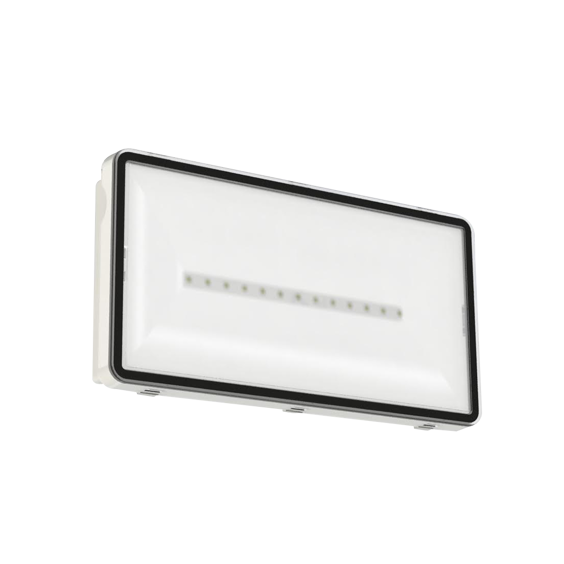

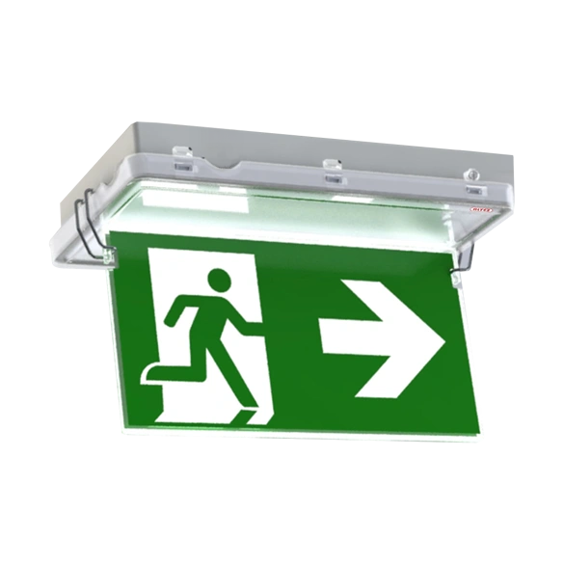

Thor
Surface Mounted / Recessed Emergency and Routing Luminary
Optics
PC transparent cover
Luminous Flux
270 lm / 450 lm
Consumption Power
3 W / 5 W
Light Color Temperature (CCT)
6500K
220V 240V
IP 65
IK 02
50K
Product Features
- Luminaire Group Emergency and Routing
- Mounting Type Surface Mounted / Recessed
- Housing ABS Body
- Optics PC transparent cover
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 02
- Operating Temperature -5°C / +45°C
- Luminous Flux 270 lm / 450 lm
- Consumption Power 3 W / 5 W
- Luminaire Efficiency 90 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >50.000 hours
- Option Dali / 1 Hour -3 Hours

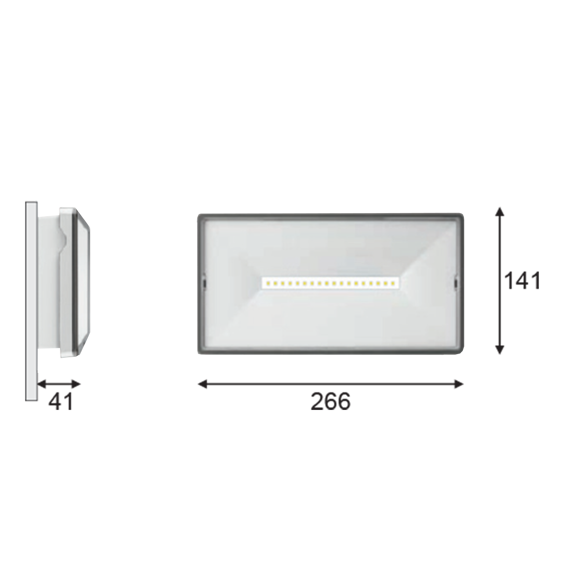

Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| TOR 026 014 003A 8065 11 99 SD 65 00 1S | 3 | 270 | 4000 | 120° PC Cover | 268x141x41 |
|
| TOR 026 014 003A 8065 13 99 SD 65 00 3S | 5 | 450 | 4000 | 120° PC Cover | 268x141x41 |
|
| TOR 026 014 005A 8065 11 99 SD 65 00 1S | 3 | 270 | 4000 | 120° PC Cover | 268x141x41 |
|
| TOR 026 014 005A 8065 13 99 SD 65 00 3S | 5 | 450 | 4000 | 120° PC Cover | 268x141x41 |
|
Download
