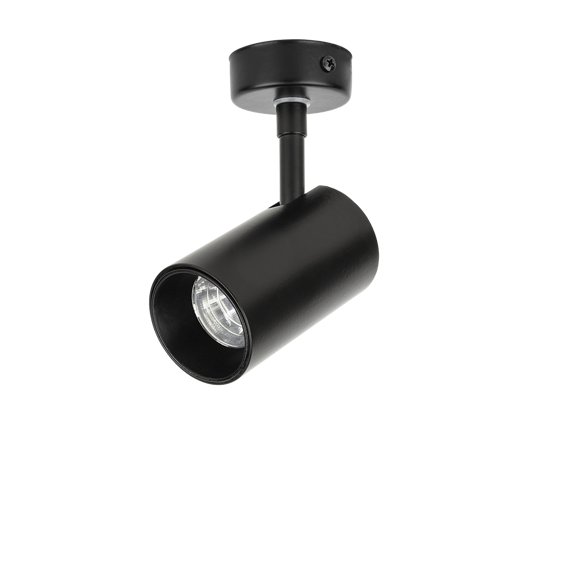

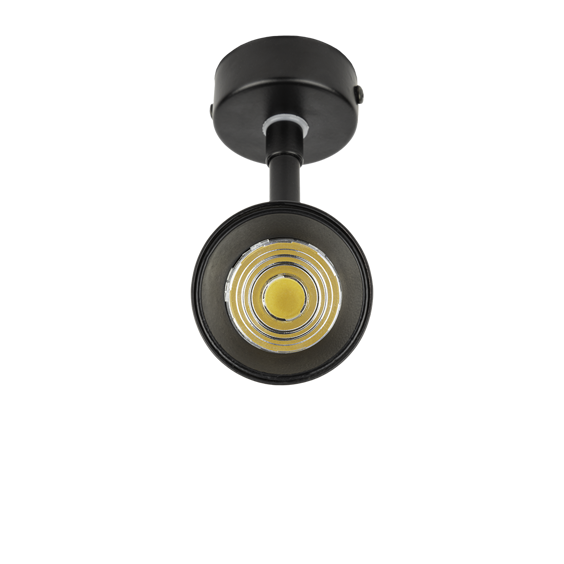

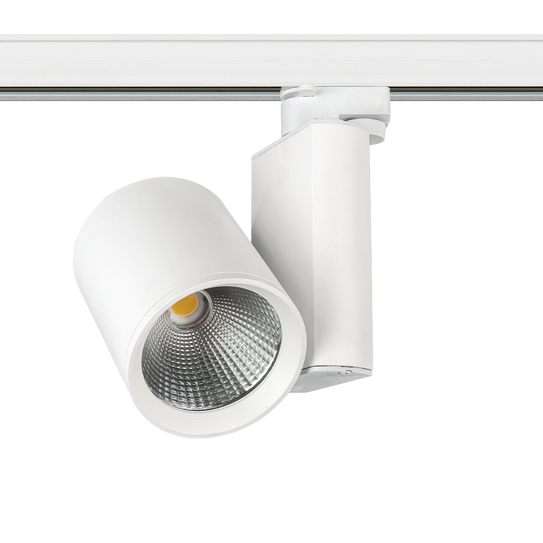

Maldive S
Track Lighting Luminary
Optics
15° 24° 36° Reflector
Luminous Flux
480 lm
Consumption Power
4 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 44
IK 02
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Track Lighting
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum Injection
- Optics 15° 24° 36° Reflector
- Light Source LED
- Electrical Protection Class CLASS II
- IP 44
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 480 lm
- Consumption Power 4 W
- Luminaire Efficiency 130 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V

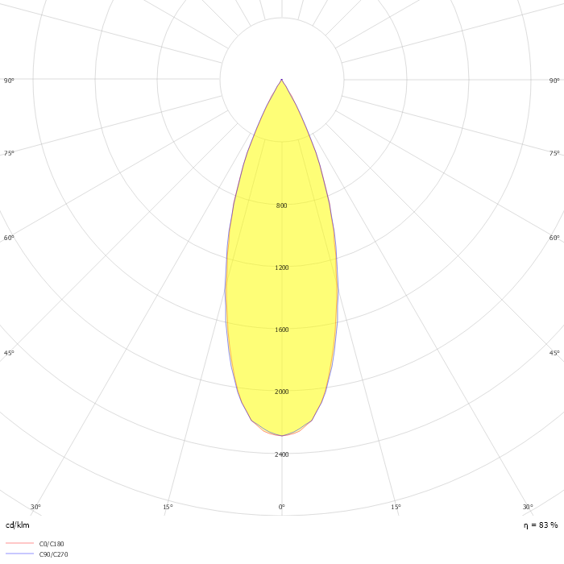

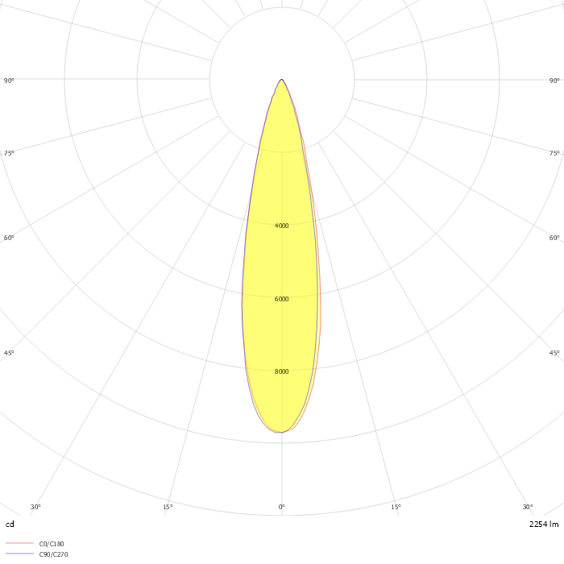

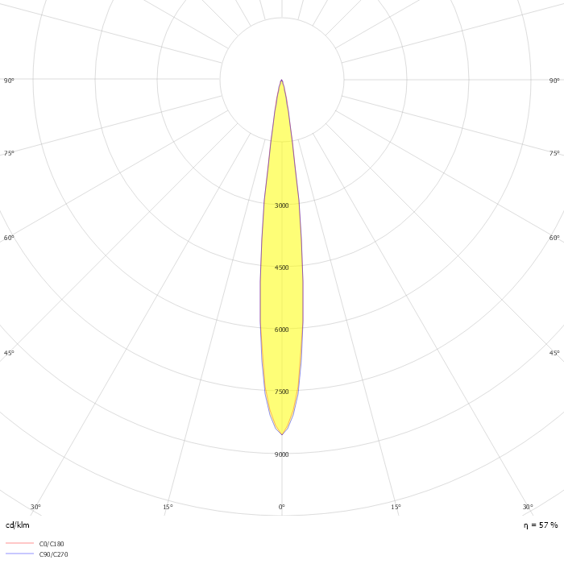

Optics
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 17001012 | MLD 004 010 004W 9040 10 15 SD 44 00 | 4 | 480 | 4000 | 15° Reflector | Ø45x100 |
|
| 17001020 | MLD 004 010 004W 9040 10 24 SD 44 00 | 4 | 480 | 4000 | 24° Reflector | Ø45x100 |
|
| 17001028 | MLD 004 010 004W 9040 10 36 SD 44 00 | 4 | 480 | 4000 | 36° Reflector | Ø45x100 |
|
Download
