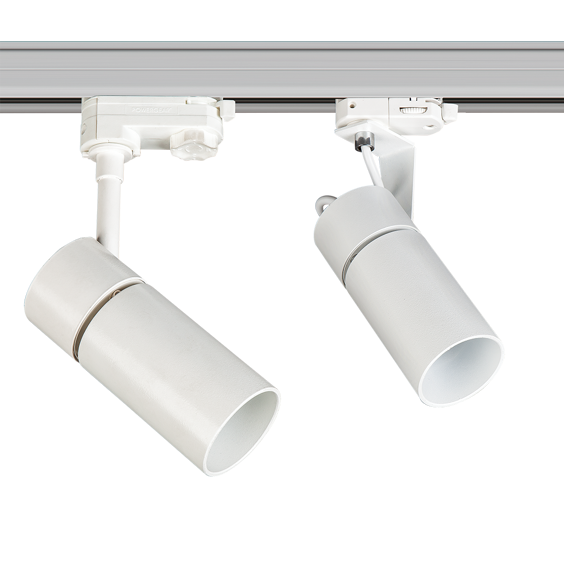

Make Mid & Make Sid
Track Lighting Luminary
Optics
GU10/MR16
Luminous Flux
Consumption Power
5 W / 8 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
IK 02
50K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Track Lighting
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum Injection
- Optics GU10/MR16
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux
- Consumption Power 5 W / 8 W
- Luminaire Efficiency - lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >50.000 hours

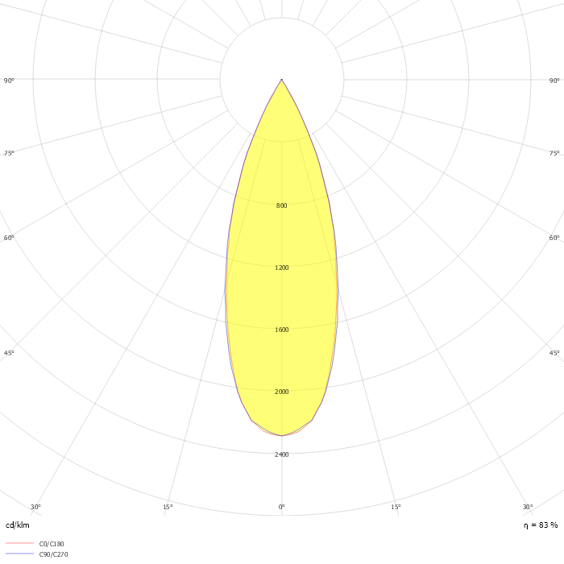

Optics
Dimensions
Product Variations
| Product Code | Power (W) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|
| MKM 006 014 005W 8027 10 36 AP 20 00 | 5 | 4000 | 36° GU10 | Ø60x210 |
|
| MKM 006 014 008W 8027 10 36 AP 20 00 | 8 | 4000 | 36° GU10 | Ø60x210 |
|
| MKS 006 012 005W 8040 10 36 AP 20 00 | 5 | 4000 | 36° GU11 | Ø60x210 |
|
| MKS 006 012 008W 8040 10 36 AP 20 00 | 5 | 4000 | 36° GU12 | Ø60x210 |
|
Download
