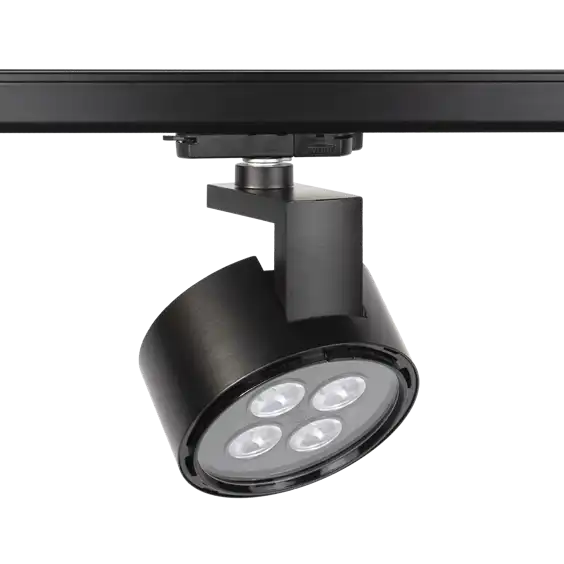

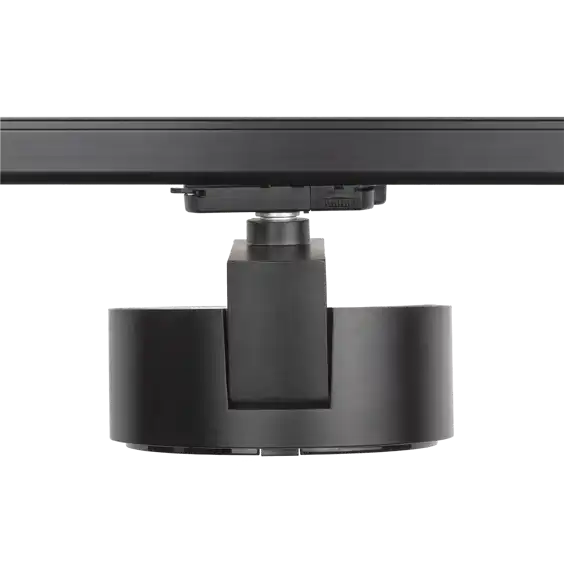

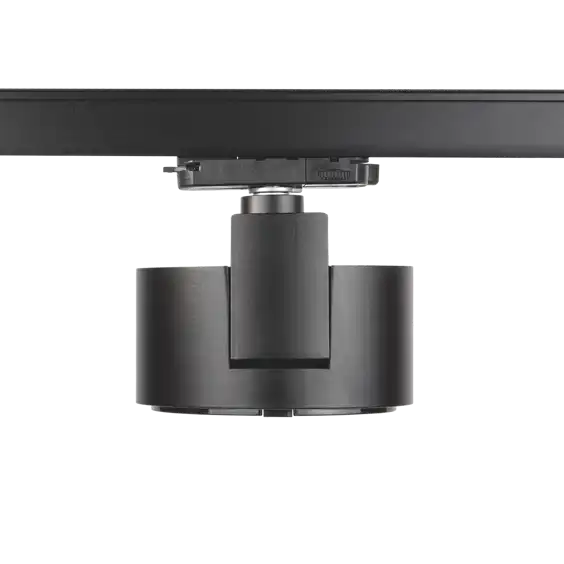

Kobe 4 & 8
Track Lighting Luminary
Optics
12° 25° 40° Lens
Luminous Flux
1920 lm / 3840 lm
Consumption Power
24 W / 48 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
IK 02
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Track Lighting
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum Injection
- Optics 12° 25° 40° Lens
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 1920 lm / 3840 lm
- Consumption Power 24 W / 48 W
- Luminaire Efficiency 80 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V

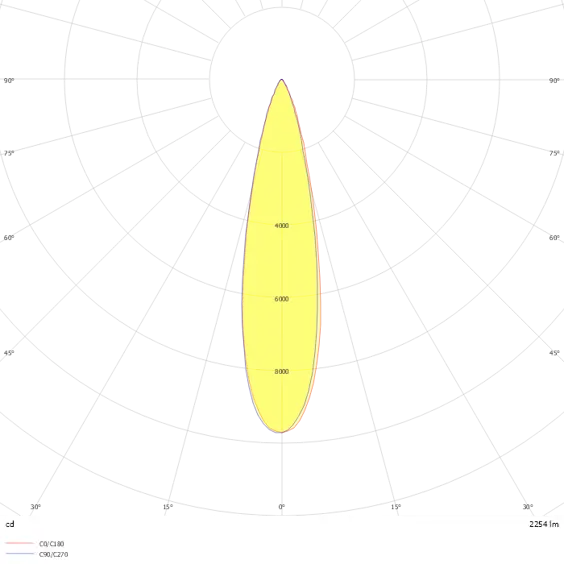

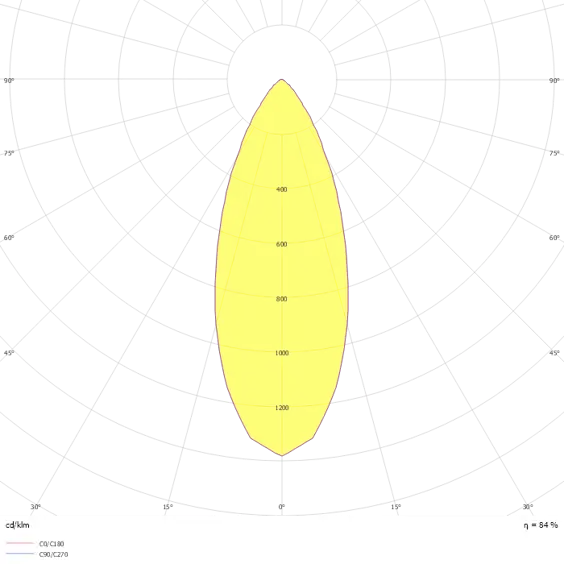

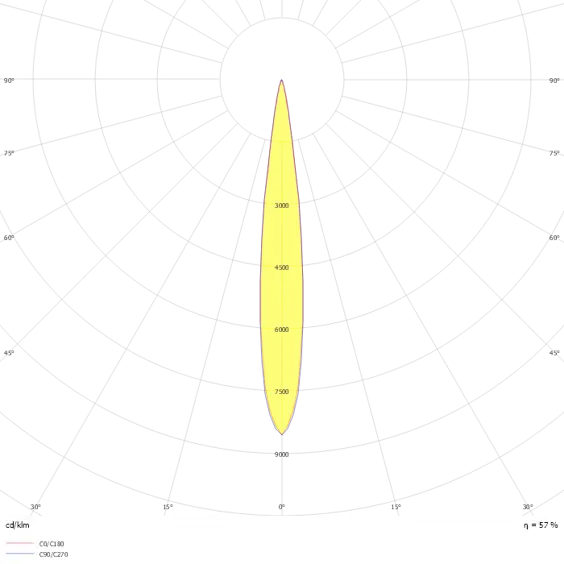

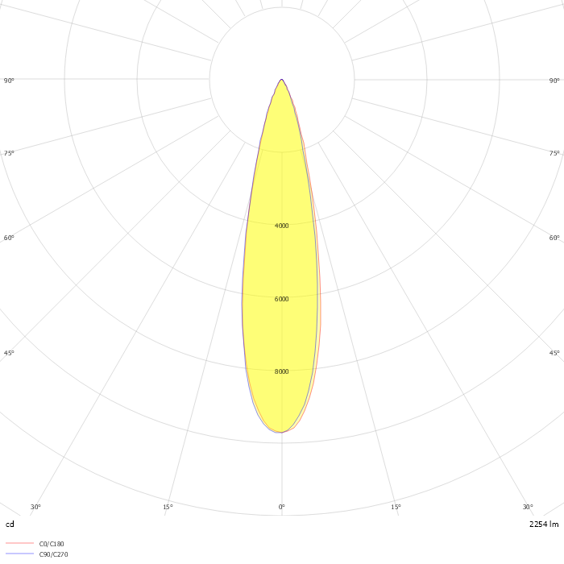

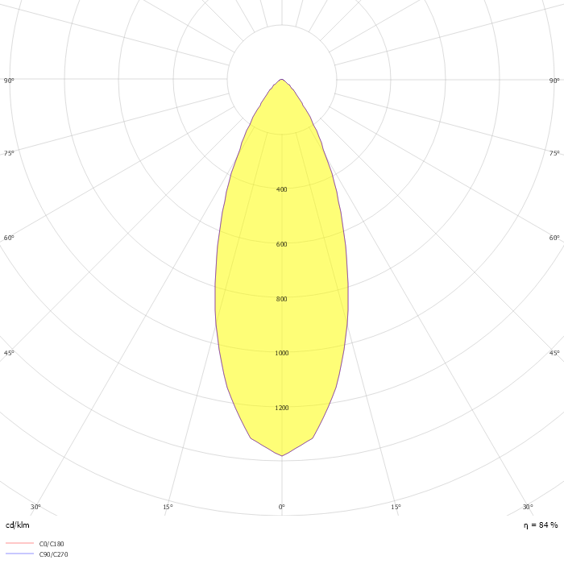

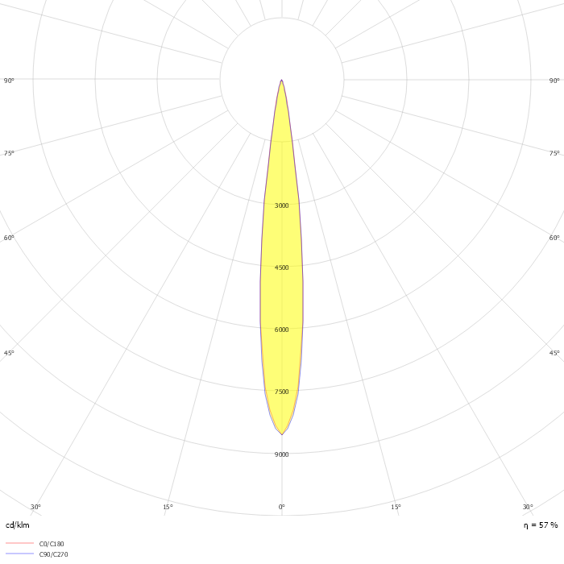

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| KOB 015 025 024W 8040 10 12 LN 20 00 | 24 | 1920 | 4000 | 12° Lens | Ø149x255 |
|
| KOB 015 025 024W 8040 10 25 LN 20 00 | 24 | 1920 | 4000 | 25° Lens | Ø149x255 |
|
| KOB 015 025 024W 8040 10 40 LN 20 00 | 24 | 1920 | 4000 | 40° Lens | Ø149x255 |
|
| KOB 018 025 048W 8040 10 12 LN 20 00 | 48 | 3840 | 4000 | 12° Lens | Ø188x255 |
|
| KOB 018 025 048W 8040 10 25 LN 20 00 | 48 | 3840 | 4000 | 25° Lens | Ø188x255 |
|
| KOB 018 025 048W 8040 10 40 LN 20 00 | 48 | 3840 | 4000 | 40° Lens | Ø188x255 |
|
Download
