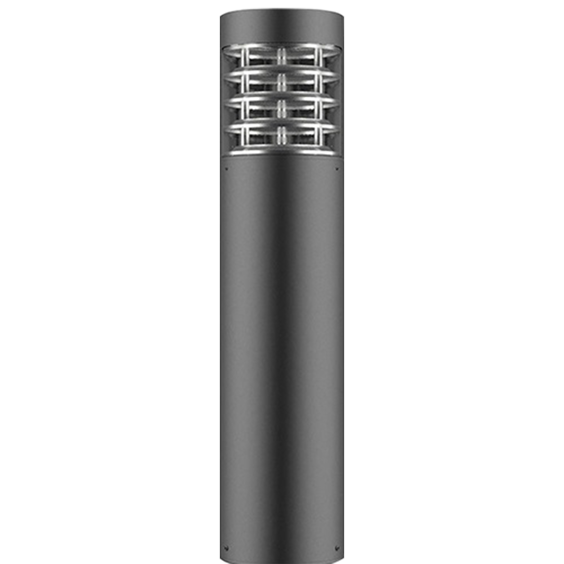

Woven 1080X1080

Woven

Concrete Park & Garden Luminary

Optics
Reflector

Luminous Flux
1180 lm

Consumption Power
9 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Outdoor Enec Tse CB 220V 240V IP 66 IK 08 70KLED life
Colour Options
RAL 9006
RAL 9005
RAL 9010
Product Features
  • Luminaire Group Park & Garden
  • Mounting Type Concrete
  • Luminary Color RAL 9006 - RAL 9005 - RAL 9010
  • Housing Aluminum Body
  • Optics Reflector
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 66
  • IK 08
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 1180 lm
  • Consumption Power 9 W
  • Luminaire Efficiency 131 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.95
  • Surge 8/9kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V
Dimensions
Woven Teknik (1)
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
WOV 012 050 009S 8040 10 99 OP 66 00 9 1180 4000 360° Opal Diffuser Ø125x500 Datasheet
WOV 012 100 009S 8040 10 99 OP 66 00 9 1180 4000 360° Opal Diffuser Ø125x1000 Datasheet
WOV 150 100 010S 8040 10 99 OP 66 00 9 1180 4000 360° Opal Diffuser Ø125x1500 Datasheet
