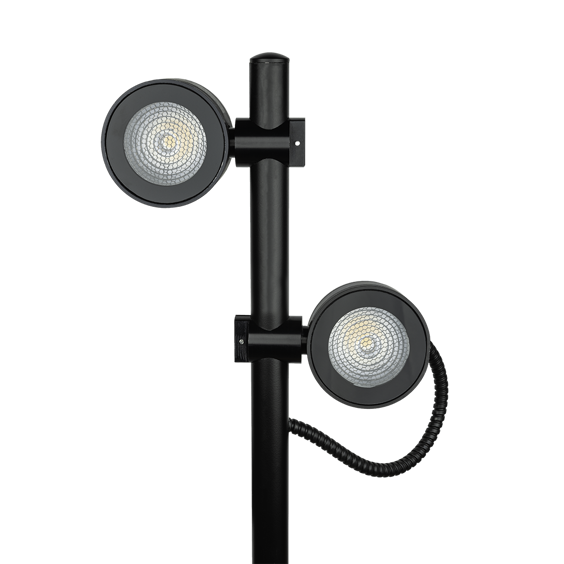

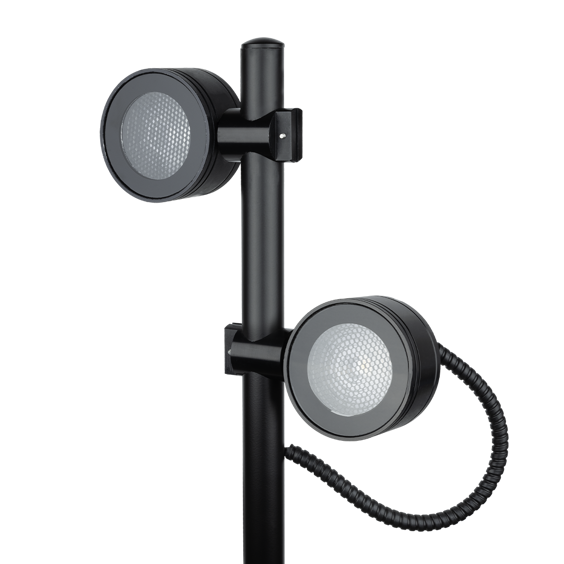

Ogen
Pole Mounted Park & Garden Luminary
Optics
12° 40° 90° Reflector
Luminous Flux
900 lm
Consumption Power
10 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 66
IK 08
70K
Colour Options
RAL 9006
RAL 9005
RAL 9010
Product Features
- Luminaire Group Park & Garden
- Mounting Type Pole Mounted
- Luminary Color RAL 9006 - RAL 9005 - RAL 9010
- Housing Aluminum Extrusion
- Optics 12° 40° 90° Reflector
- Light Source LED
- Electrical Protection Class CLASS II
- IP 66
- IK 08
- Operating Temperature -20°C / +40°C
- Luminous Flux 900 lm
- Consumption Power 10 W
- Luminaire Efficiency 90 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V

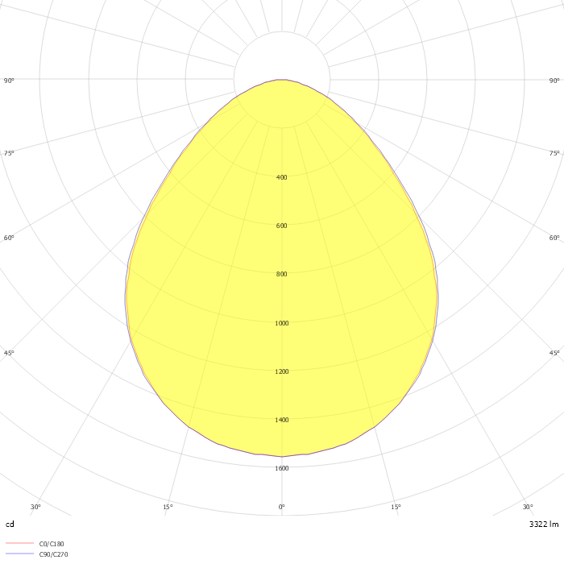

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| OGN 010 010 010M 8040 10 12 LN 20 00 | 10 | 900 | 4000 | 12° Reflektor | Ø100 |
|
| OGN 010 010 010M 8040 10 90 LN 20 00 | 10 | 900 | 4000 | 90° Reflector | Ø100 |
|
Download
