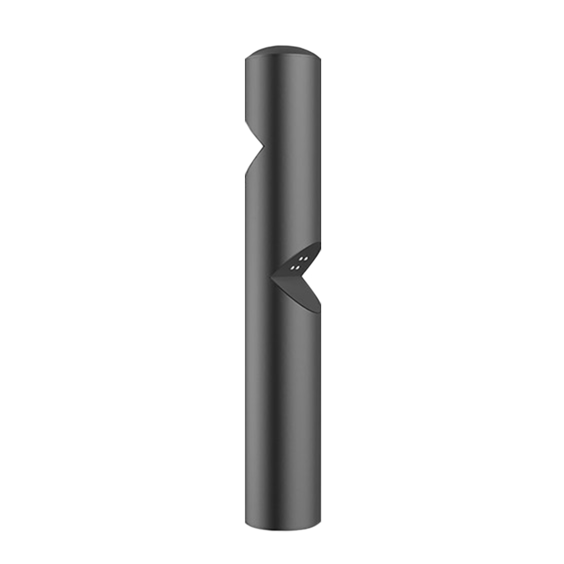

Dash

Concrete Park & Garden Luminary

Optics
PMMA Lens

Luminous Flux
1040 lm

Consumption Power
8 W

Light Color Temperature (CCT)
2700K/3000K/4000K/6500K

Toprak Ce Outdoor Enec Tse CB 220V 240V IP 66 IK 09 70KLED life
Colour Options
RAL 9006
RAL 9005
RAL 9010
Product Features
  • Luminaire Group Park & Garden
  • Mounting Type Concrete
  • Luminary Color RAL 9006 - RAL 9005 - RAL 9010
  • Housing Dkp Sheet
  • Optics PMMA Lens
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 66
  • IK 09
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 1040 lm
  • Consumption Power 8 W
  • Luminaire Efficiency 130 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V
Dimensions
Dash Teknik (1)
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet
DAS 125 050 008S 8040 10 90 LN 66 00 8 1040 4000 90° Diffuser Ø125x500 Datasheet
DAS 125 080 008S 8040 10 90 LN 66 00 8 1040 4000 90° Diffuser Ø125x800 Datasheet
DAS 125 100 008S 8040 10 90 LN 66 00 8 1040 4000 90° Diffuser Ø125x1000 Datasheet
Download
