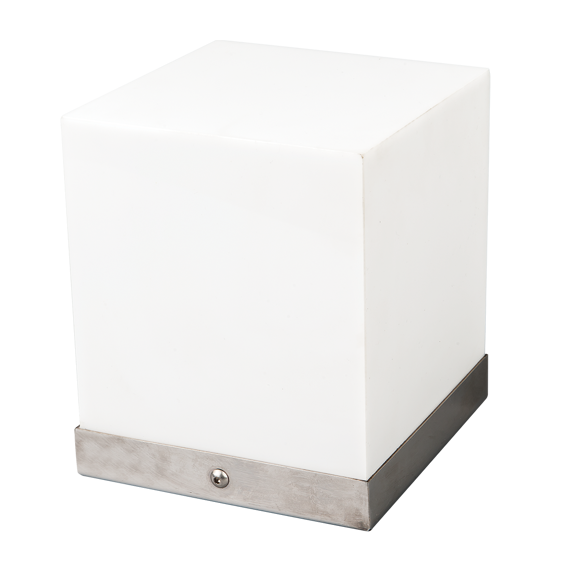

Orii
Concrete Park & Garden Luminary
Optics
Acrylic Diffuser
Luminous Flux
290 lm
Consumption Power
5 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 02
70K
Product Features
- Luminaire Group Park & Garden
- Mounting Type Concrete
- Housing Dkp Sheet
- Optics Acrylic Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 290 lm
- Consumption Power 5 W
- Luminaire Efficiency 58 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 74000081 | ORI 020 020 005Y 8030 10 99 OP 65 00 | 5 | 290 | 4000 | 360° Opal Diffuser | 200x200x200 |
|
Download
