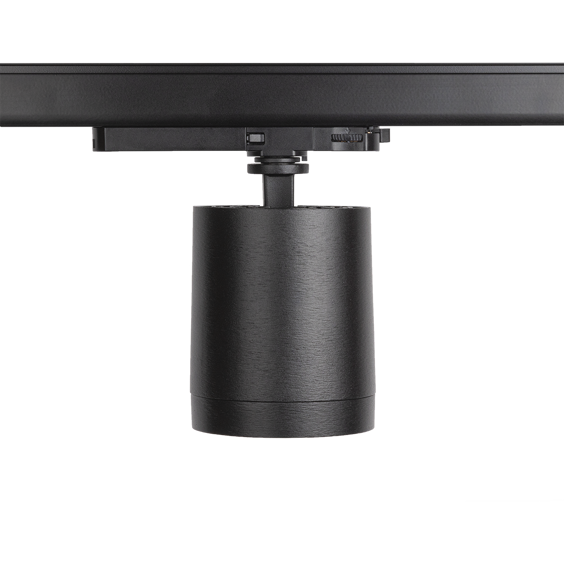

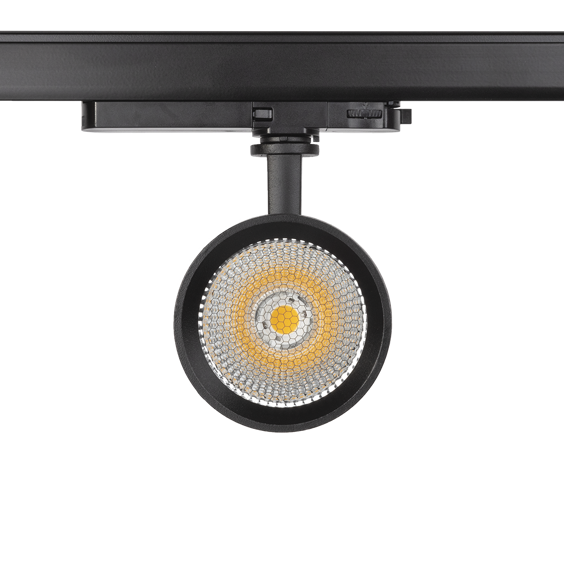

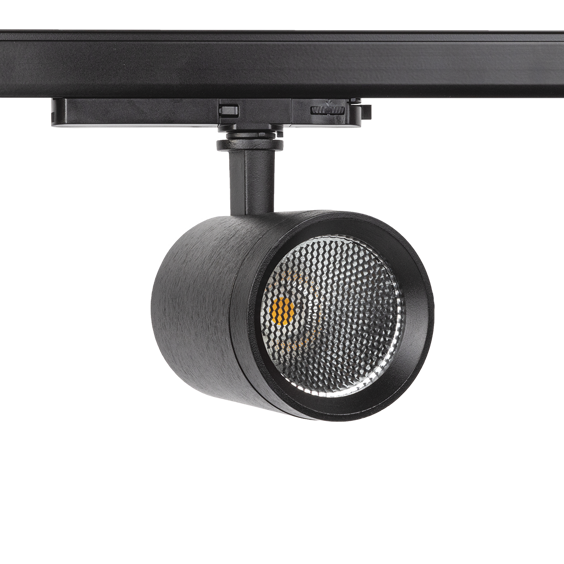

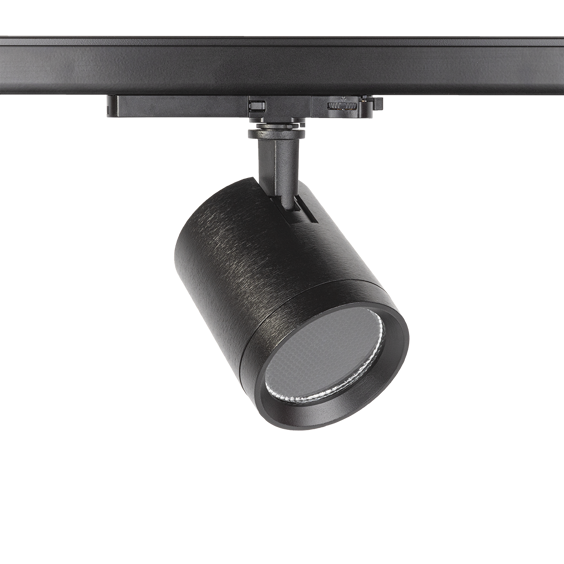

Plenus
Track Lighting Luminary
Optics
15° 30° 40° Reflector
Luminous Flux
1560 lm / 2160 lm / 3120 lm / 3960 lm
Consumption Power
13 W / 18 W / 26 W / 33 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 02
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Track Lighting
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum Injection
- Optics 15° 30° 40° Reflector
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 1560 lm / 2160 lm / 3120 lm / 3960 lm
- Consumption Power 13 W / 18 W / 26 W / 33 W
- Luminaire Efficiency 130 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V
Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| PLS 010 012 013W 8040 10 40 CA 20 00 | 13 | 1560 | 4000 | 40° Reflector | Ø102x127 |
|
| PLS 010 012 018W 8040 10 40 CA 20 00 | 18 | 2160 | 4000 | 40° Reflector | Ø102x127 |
|
| PLS 010 012 026W 8040 10 40 CA 20 00 | 26 | 3120 | 4000 | 40° Reflector | Ø102x127 |
|
| PLS 010 012 033W 8040 10 40 CA 20 00 | 33 | 3960 | 4000 | 40° Reflector | Ø102x127 |
|
Download
