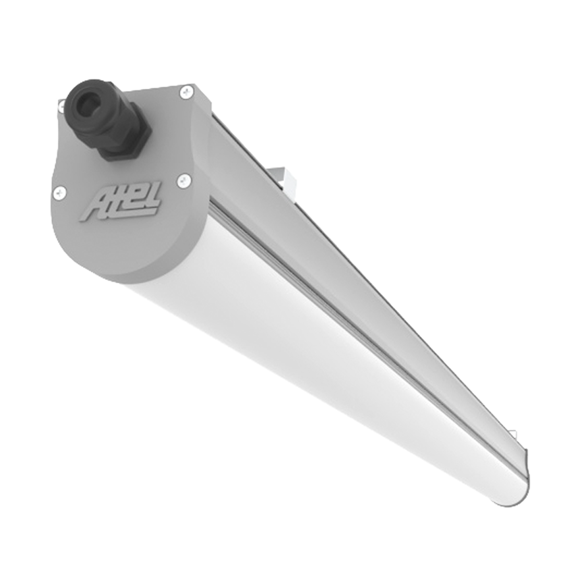

Luma
Surface Mounted Industrial Luminary
Optics
Opal PC Diffuser
Luminous Flux
2214 lm / 3444 lm / 4551 lm / 5658 lm / 7986 lm
Consumption Power
18 W / 28 W / 37 W / 46 W / 66 W
Light Color Temperature (CCT)
2700K / 3000K / 4000K / 6500K
220V 240V
IP 65
IK 09
70K
Product Features
- Luminaire Group Industrial
- Mounting Type Surface Mounted
- Housing Aluminum Anodized Coating
- Optics Opal PC Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 09
- Operating Temperature -20°C / +40°C
- Luminous Flux 2214 lm / 3444 lm / 4551 lm / 5658 lm / 7986 lm
- Consumption Power 18 W / 28 W / 37 W / 46 W / 66 W
- Luminaire Efficiency 123 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K / 3000K / 4000K / 6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life 70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

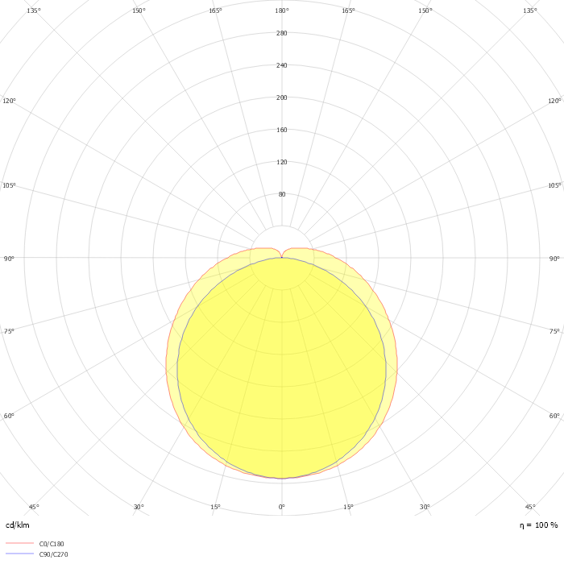

Optics

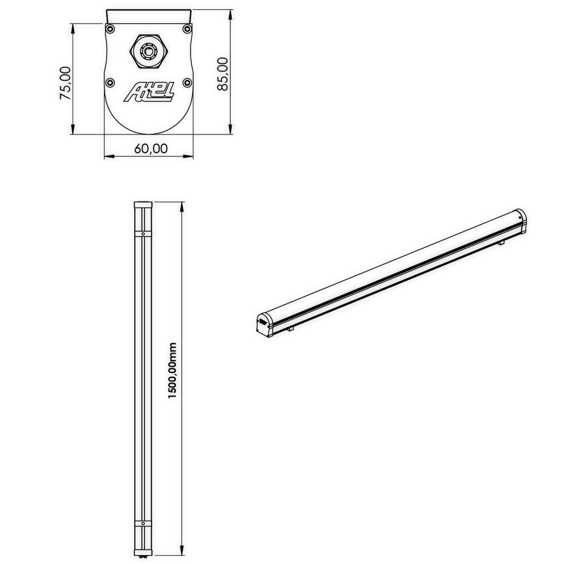

Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| LMA 005 060 018S 8040 10 99 OP 65 00 | 18 | 2214 | 4000 | 120° Opal PC Diffuser | 84x75x600 |
|
| LMA 005 090 028S 8040 10 99 OP 65 00 | 28 | 3444 | 4000 | 120° Opal PC Diffuser | 84x75x900 |
|
| LMA 005 120 037S 8040 10 99 OP 65 00 | 37 | 4551 | 4000 | 120° Opal PC Diffuser | 84x75x1200 |
|
| LMA 005 150 046S 8040 10 99 OP 65 00 | 46 | 5658 | 4000 | 120° Opal PC Diffuser | 84x75x1500 |
|
| LMA 005 150 066S 8040 10 99 OP 65 00 | 66 | 7986 | 4000 | 120° Opal PC Diffuser | 84x75x1500 |
|
