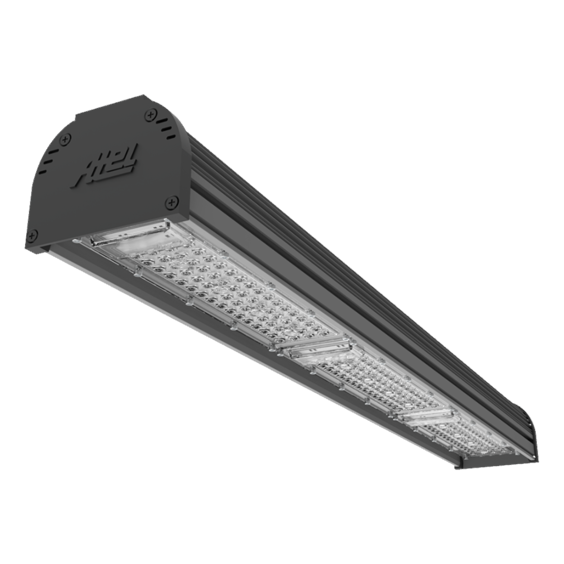

GLOW HE (1)

Glow HE

Industrial Luminary

Optics
90° Lens

Luminous Flux
16262 lm

Consumption Power
95 W

Light Color Temperature (CCT)
4000K

Toprak Ce Indoor Tse CB Enec 220V 240V IP 66 IK 09 100KLED life
Colour Options
RAL 9005
Product Features
  • Luminaire Group Industrial
  • Luminary Color RAL 9005
  • Housing Electrostatic Powder Coated Aluminum Extrusion Body
  • Optics 90° Lens
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 66
  • IK 09
  • Operating Temperature -20°C / +40°C
  • Luminous Flux 16262 lm
  • Consumption Power 95 W
  • Luminaire Efficiency 171 lm/W
  • Color Rendering (CRI) >83
  • Light Color Temperature (CCT) 4000K
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >100.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit / Industrial
Optics

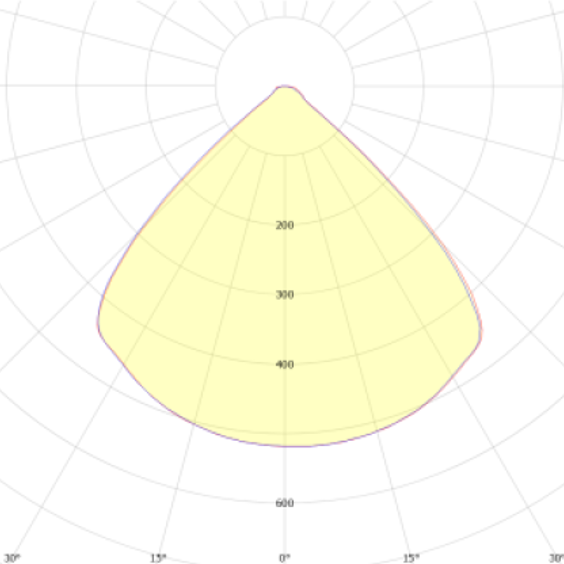

GLOW HE Isik Egrisi
Dimensions
GLOW HE Teknik Cizim
Product Variations
Product Code Power (W) Luminous Flux (LM) CCT (K) Optics Dimensions (mm) Datasheet LDT
GLW 010 078 095S 8040 10 90 LN 66 00 95 16262 4000 90º Lens 539x105x81 Datasheet LDT
