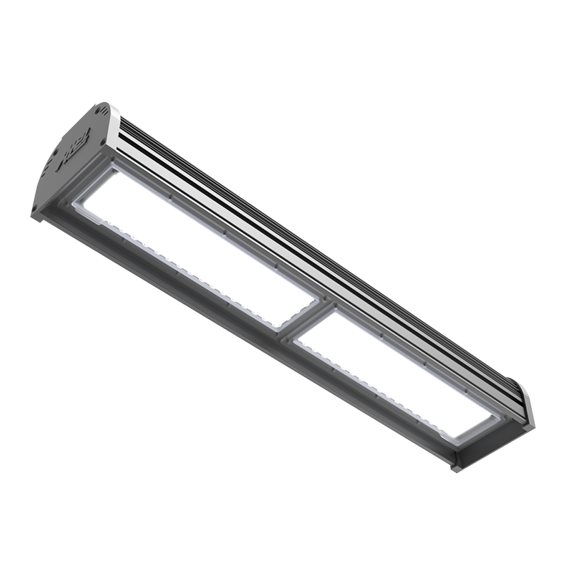

Glow X2
Industrial Luminary
Optics
60º / 90° / 30x70° Lens & Tempered Glass
Luminous Flux
14875 lm
Consumption Power
97 W
Light Color Temperature (CCT)
2700K / 3000K / 4000K / 6500K
220V 240V
IP 66
IK 09
100K
Colour Options
RAL 9005
Product Features
- Luminaire Group Industrial
- Luminary Color RAL 9005
- Housing Electrostatic Powder Coated Aluminum Extrusion Body
- Optics 60º / 90° / 30x70° Lens & Tempered Glass
- Light Source LED
- Electrical Protection Class CLASS II
- IP 66
- IK 09
- Operating Temperature -20°C / +40°C
- Luminous Flux 14875 lm
- Consumption Power 97 W
- Luminaire Efficiency 153,36 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K / 3000K / 4000K / 6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life 100.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit / Industrial

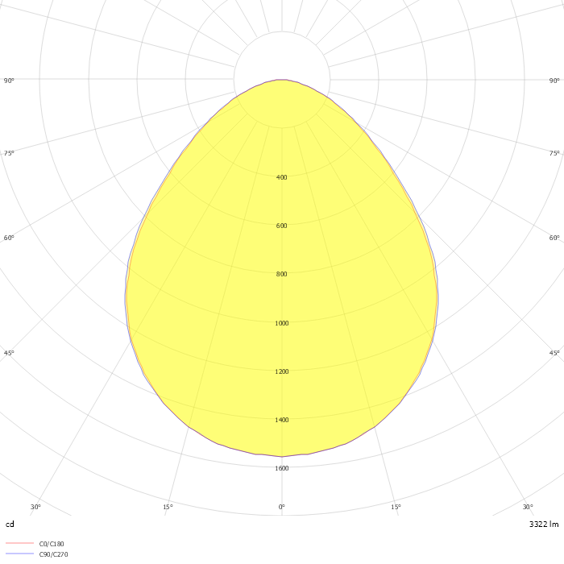

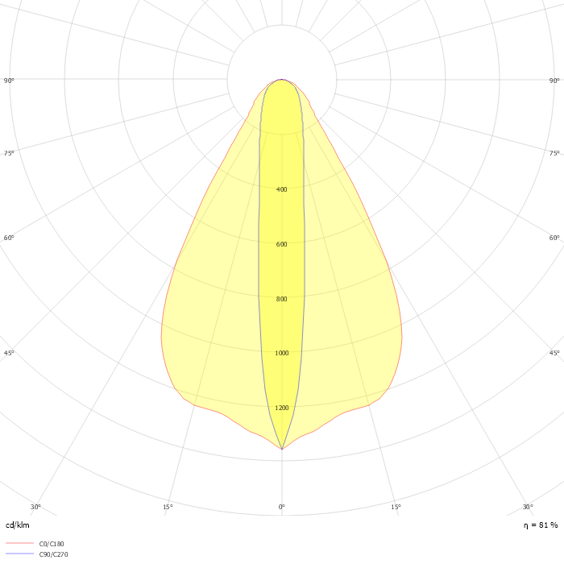

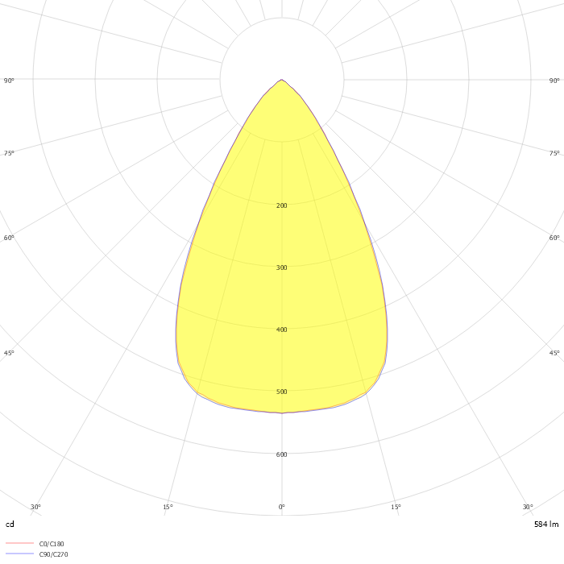

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet | LDT |
|---|---|---|---|---|---|---|---|
| GLW 010 054 097S 8040 10 02 LN 66 00 | 97 | 14875 | 4000 | 30°x70° Lens | 539x105x81 |
|
|
| GLW 010 054 097S 8040 10 90 LN 66 00 | 97 | 14875 | 4000 | 90° Lens | 539x105x81 |
|
|
| GLW 010 054 097S 8040 10 60 LN 66 00 | 97 | 14875 | 4000 | 60° Lens | 539x105x81 |
|
|
