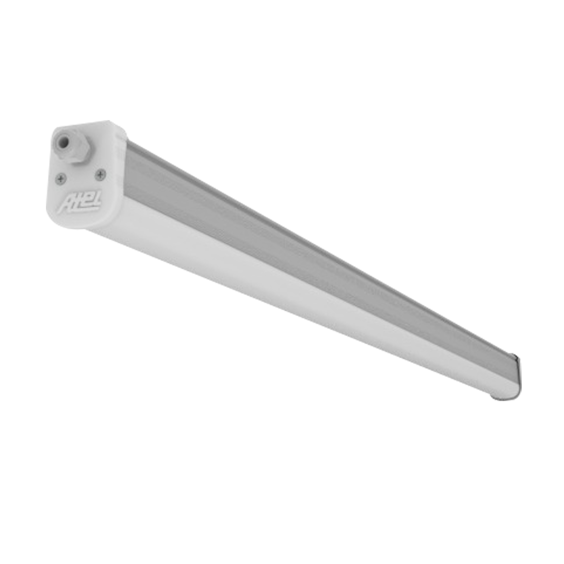

Luma PC
Surface Mounted Industrial Luminary
Optics
Opal Polycarbonate
Luminous Flux
1920 lm / 2880 lm / 3840 lm / 4800 lm
Consumption Power
16 W / 24 W / 32 W / 40 W
Light Color Temperature (CCT)
2700K / 3000K / 4000K / 6500K
220V 240V
IP 65
IK 09
70K
Product Features
- Luminaire Group Industrial
- Mounting Type Surface Mounted
- Housing Gray Polycarbonate
- Optics Opal Polycarbonate
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 09
- Operating Temperature -20°C / +40°C
- Luminous Flux 1920 lm / 2880 lm / 3840 lm / 4800 lm
- Consumption Power 16 W / 24 W / 32 W / 40 W
- Luminaire Efficiency 123 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K / 3000K / 4000K / 6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life 70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

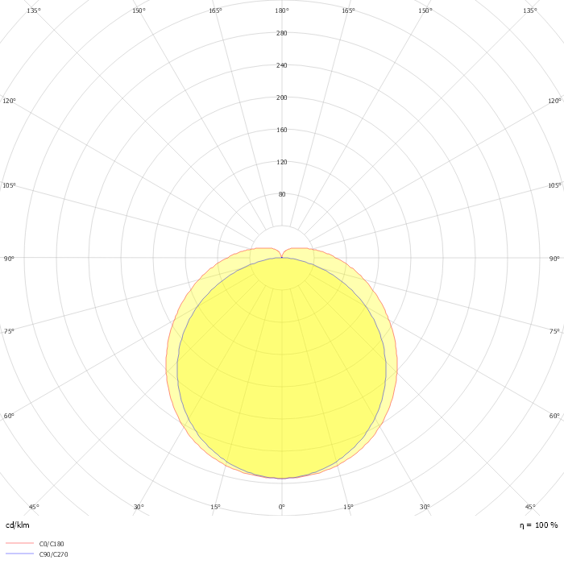

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| LMP 007 060 016S 8040 10 99 OP 65 00 | 16 | 1920 | 4000 | 120° Polycarbonate | 55x72x600 |
|
| LMP 007 090 024S 8040 10 99 OP 65 00 | 24 | 2880 | 4000 | 120° Polycarbonate | 55x72x900 |
|
| LMP 007 120 032S 8040 10 99 OP 65 00 | 32 | 3840 | 4000 | 120° Polycarbonate | 55x72x1200 |
|
| LMP 007 150 040S 8040 10 99 OP 65 00 | 40 | 4800 | 4000 | 120° Polycarbonate | 55x72x1500 |
|
Download
