Cioran

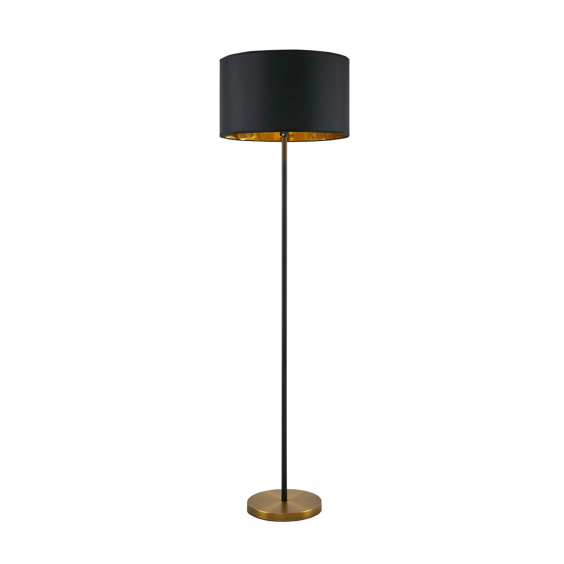

Surface Mounted Floor Lamp and Lampshade Luminary
Optics
Fabric Over PVC
Luminous Flux
Consumption Power
20 W
Light Color Temperature (CCT)
2700K
220V 240V
IP 20
IK 02
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Floor Lamp and Lampshade
- Mounting Type Surface Mounted
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing DKP Sheet
- Optics Fabric Over PVC
- Light Source E27
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux
- Consumption Power 20 W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- Option On-Off / Dali / 1-10V / With Emergency Kit
Dimensions
Product Variations
| Product Code | Power (W) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|
| COR 017 042 020D 8027 10 99 PC 20 00 | 20 | 4000 | 360° E27 | Ø170x425 |
|
| COR 017 038 020M 8027 10 99 PC 20 00 | 20 | 4000 | 360° E27 | Ø170x380 |
|
