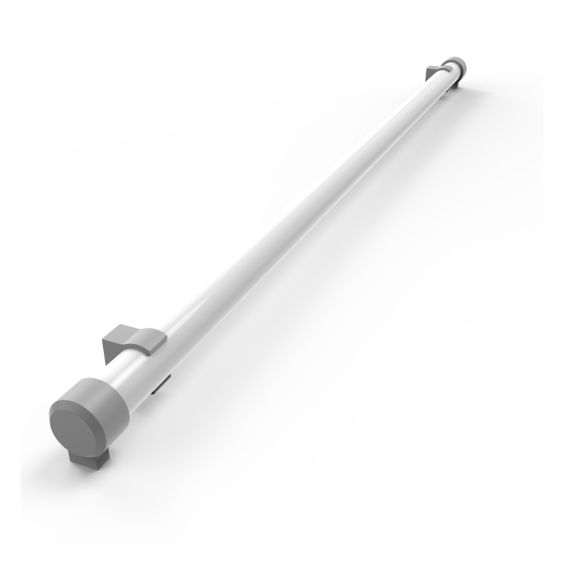

Tubline
Surface Mounted Facade & Landscape Luminary
Optics
Polycarbonate Acrylic
Luminous Flux
869 lm
Consumption Power
12 W
Light Color Temperature (CCT)
2700K / 3000K / 4000K / 6500K
220V 240V
IP 65
IK 02
70K
Product Features
- Luminaire Group Facade & Landscape
- Mounting Type Surface Mounted
- Housing Polycarbonate
- Optics Polycarbonate Acrylic
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 869 lm
- Consumption Power 12 W
- Luminaire Efficiency 69 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K / 3000K / 4000K / 6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| TUB 002 100 0012S 8040 10 99 OP 65 00 | 12 | 869 | 4000 | 180° Polycarbonate Acrylic | Ø30mm L:1000 |
|
