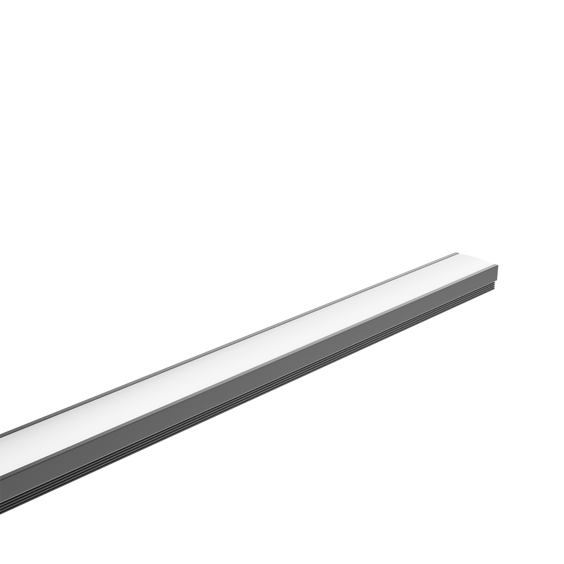

Hidline Mini
Surface Mounted Cove Lighting Luminary
Optics
Diffuser
Luminous Flux
960 lm
Consumption Power
12 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
IK 03
70K
Product Features
- Luminaire Group Cove Lighting
- Mounting Type Surface Mounted
- Housing Aluminum Profile
- Optics Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- IK 03
- Operating Temperature -20°C / +40°C
- Luminous Flux 960 lm
- Consumption Power 12 W
- Luminaire Efficiency 80 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

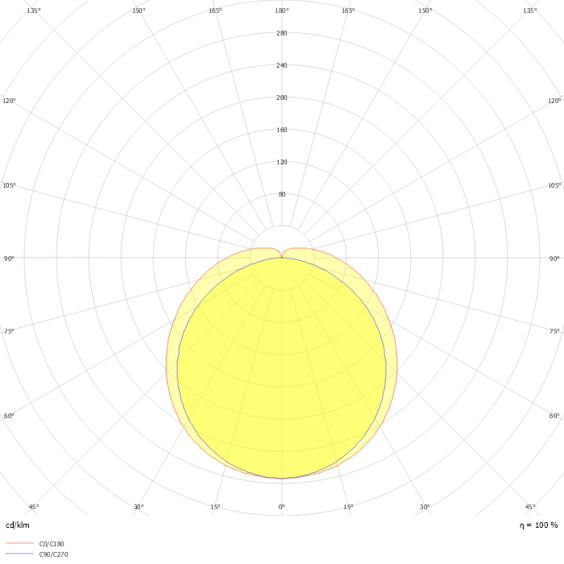

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| HID 015 100 012S 8030 10 99 OP 24 00 | 12 | 960 | 4000 | 130° Diffuser | 1000x14,5x10,7 |
|
Download
