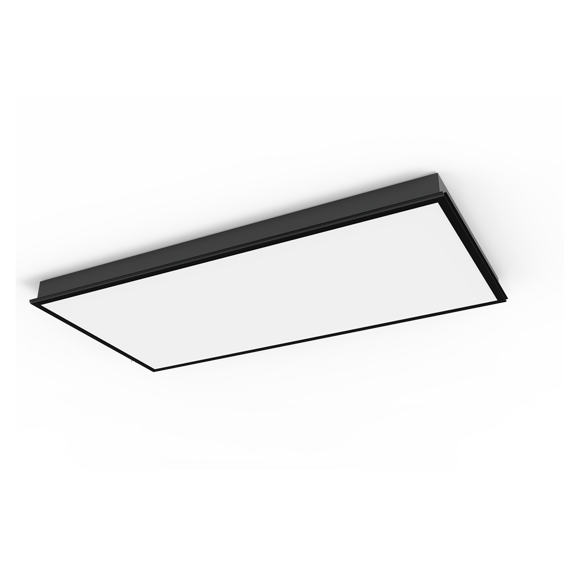

Sterilis
Recessed Luminary
Optics
Opal Diffuser
Luminous Flux
2000 lm / 2400 lm / 4000 lm
Consumption Power
20 W / 24 W / 40 W / 70 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 65
IK 02
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Recessed
- Mounting Type Recessed
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing DKP Sheet
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 65
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 2000 lm / 2400 lm / 4000 lm
- Consumption Power 20 W / 24 W / 40 W / 70 W
- Luminaire Efficiency 100 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| SRS 027 027 020A 8040 10 99 OP 65 00 | 20 | 2000 | 4000 | 120° Opal Diffuser | 275x275x60 |
|
| SRS 060 060 024A 8040 10 90 OP 65 00 | 24 | 2400 | 4000 | 120° Opal Diffuser | 575x575x60 |
|
| SRS 060 060 040A 8040 10 99 OP 65 00 | 40 | 4000 | 4000 | 120° Opal Diffuser | 575x575x60 |
|
| SRS 120 030 070A 8040 10 99 OP 65 00 | 70 | 4000 | 4000 | 120° Opal Diffuser | 1195x295x60 |
|
Download
