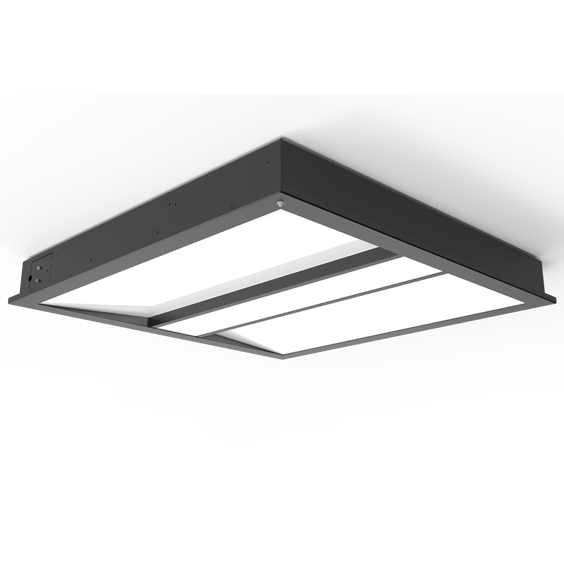

Hook 1080X1080

Hook

Recessed Luminary

Optics
Opal Diffuser

Luminous Flux

Consumption Power

Light Color Temperature (CCT)

Toprak Ce Indoor Enec Tse CB 220V 240V IP 20 IK 02 70KLED life
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
  • Luminaire Group Recessed
  • Mounting Type Recessed
  • Luminary Color RAL 9005 - RAL 9006 - RAL 9010
  • Housing DKP Sheet
  • Optics Opal Diffuser
  • Light Source LED
  • Electrical Protection Class CLASS II
  • IP 20
  • IK 02
  • Operating Temperature -20°C / +40°C
  • Luminous Flux
  • Consumption Power
  • Luminaire Efficiency 110 lm/W
  • Color Rendering (CRI) >80
  • Light Color Temperature (CCT)
  • Color Tolerance < 3 SDCM
  • Driver Type On/Off
  • Driver Brand Tridonic
  • LED Brand Samsung
  • Input Voltage / Frequency 220-240 V AC 50/60 Hz
  • Power Factor >0.9
  • Surge 1kV
  • THD (AKIM) >%20
  • LED life >70.000 hours
  • Option On-Off / Dali / 1-10V / With Emergency Kit

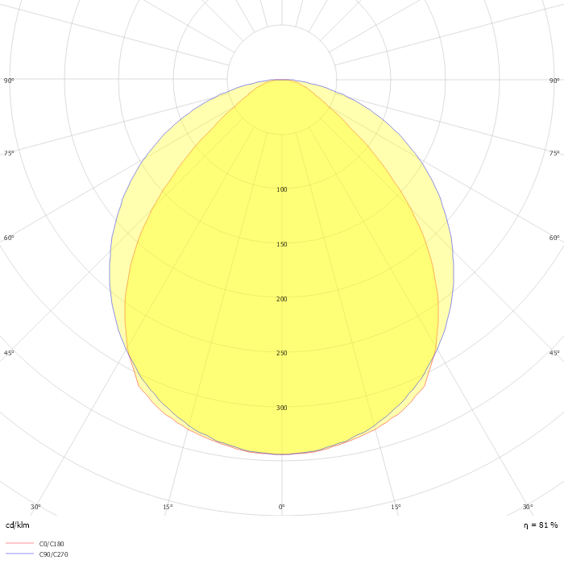

Optics
110–
Dimensions
Hook Teknik (1)
