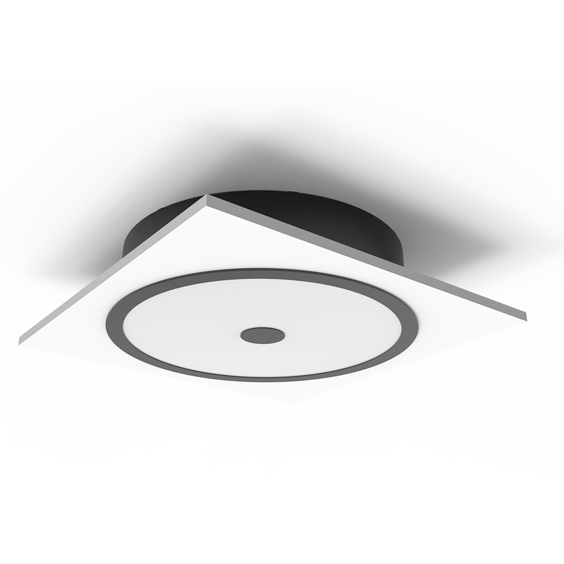

Full Moon
Recessed Luminary
Optics
Opal Diffuser
Luminous Flux
3650 lm / 5730 lm / 6290 lm
Consumption Power
25 W / 35 W / 48 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 02
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Recessed
- Mounting Type Recessed
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing DKP Sheet
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 3650 lm / 5730 lm / 6290 lm
- Consumption Power 25 W / 35 W / 48 W
- Luminaire Efficiency 146 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
Dimensions
Product Variations
| SKU | Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|---|
| 13000085 | FLM 038 010 025A 8040 10 99 OP 40 00 | 25 | 3650 | 4000 | 120° Opal Diffuser | Ø380 |
|
| 13000109 | FLM 046 010 035A 8040 10 99 OP 40 00 | 35 | 5730 | 4000 | 120° Opal Diffuser | Ø460 |
|
| 13000133 | FLM 066 010 048A 8040 10 99 OP 40 00 | 48 | 6290 | 4000 | 120° Opal Diffuser | Ø660 |
|
