Absorb
Pendant Acoustic Solutions Luminary
Optics
34° 48° Reflector / Opal Diffuser
Luminous Flux
1925 lm / 2125 lm
Consumption Power
22 W / 25 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
IK 02
70K
Product Features
- Luminaire Group Acoustic Solutions
- Mounting Type Pendant
- Housing Acoustic Panel
- Optics 34° 48° Reflector / Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 1925 lm / 2125 lm
- Consumption Power 22 W / 25 W
- Luminaire Efficiency 87,5 lm/W - 85 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

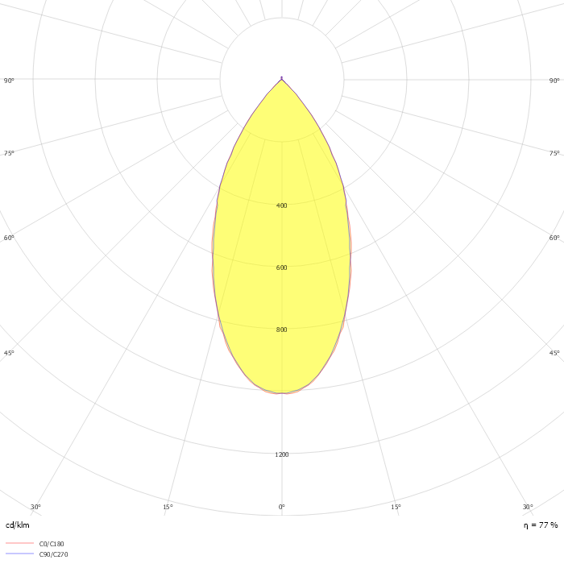

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| ABS 180 180 022A 8040 10 48 RF 20 00 FLS | 22 | 1925 | 4000 | 48° Reflector | 1800X1800 |
|
| ABS 180 180 025A 8040 10 48 RF 20 00 OFL | 25 | 2125 | 4000 | 120° Opal Diffuser | 1800X1800 |
|
Download
