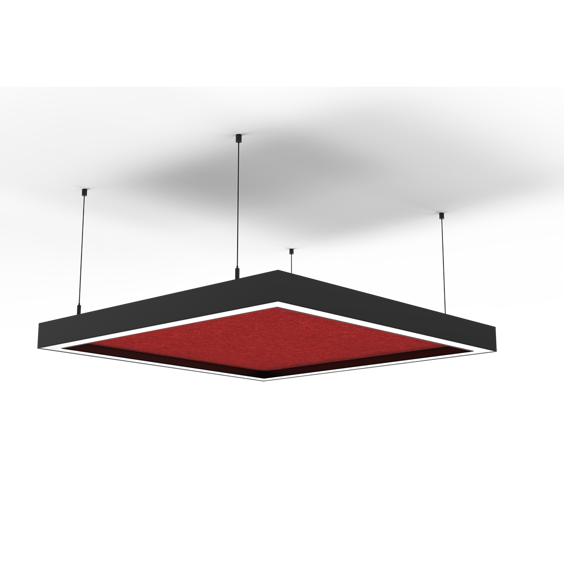

ShorRec Felt
Pendant Acoustic Solutions Luminary
Optics
Opal Diffuser
Luminous Flux
11232 lm / 14976 lm / 7488 lm
Consumption Power
104 W / 52 W / 78 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 40
IK 02
70K
Colour Options
RAL 9005
RAL 9006
RAL 9010
Product Features
- Luminaire Group Acoustic Solutions
- Mounting Type Pendant
- Luminary Color RAL 9005 - RAL 9006 - RAL 9010
- Housing Aluminum Extrusion & Acoustic Panel
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 40
- IK 02
- Operating Temperature -20°C / +40°C
- Luminous Flux 11232 lm / 14976 lm / 7488 lm
- Consumption Power 104 W / 52 W / 78 W
- Luminaire Efficiency 144 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| SRC 061 061 052P 8040 10 99 OP 40 00 F | 52 | 7488 | 4000 | 120° Diffuser | 610x610x70 |
|
| SRC 089 089 078P 8040 10 99 OP 40 00 F | 78 | 11232 | 4000 | 120° Diffuser | 890x890x70 |
|
| SRC 117 117 104P 8040 10 99 OP 40 00 F | 104 | 14976 | 4000 | 120° Diffuser | 1170x1170x70 |
|
