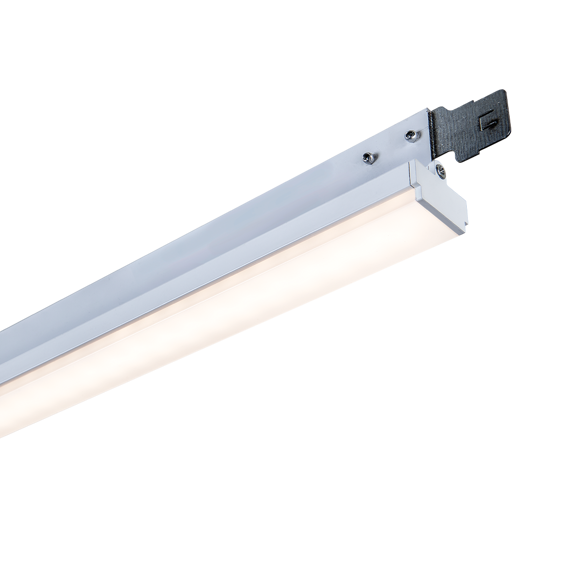

T24 MainGrid
Recessed Concept Ceiling Luminary
Optics
Opal Diffuser
Luminous Flux
1350 lm / 2700 lm
Consumption Power
13 W / 26 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
70K
Colour Options
RAL 9005
RAL 9010
Product Features
- Luminaire Group Concept Ceiling
- Mounting Type Recessed
- Luminary Color RAL 9005 - RAL 9010
- Housing Aluminum extruded profile
- Optics Opal Diffuser
- Electrical Protection Class CLASS II
- Operating Temperature -20°C / +40°C
- Luminous Flux 1350 lm / 2700 lm
- Consumption Power 13 W / 26 W
- Luminaire Efficiency 103,8 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

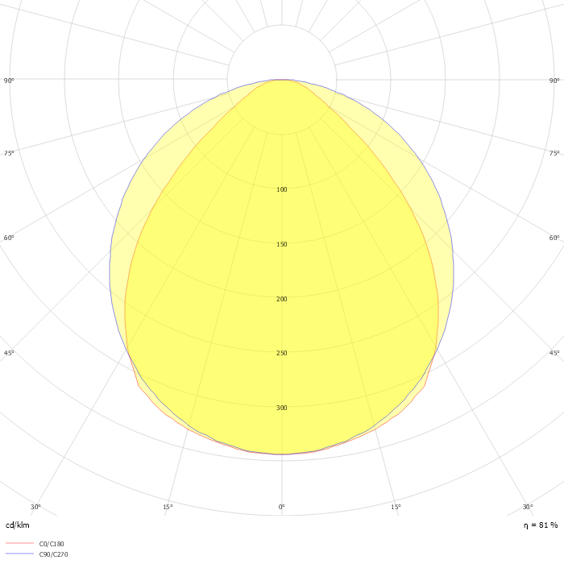

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| MGD 024 117 026A 8040 10 99 OP 40 00 | 26 | 2700 | 4000 | 120° Opal Diffuser | 575x12x24 |
|
| MGD 024 057 013A 8040 10 99 OP 40 00 | 13 | 1350 | 4000 | 120° Opal Diffuser | 1175x12x24 |
|
Download

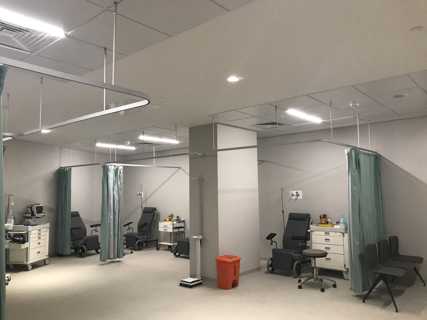

Product Applications
