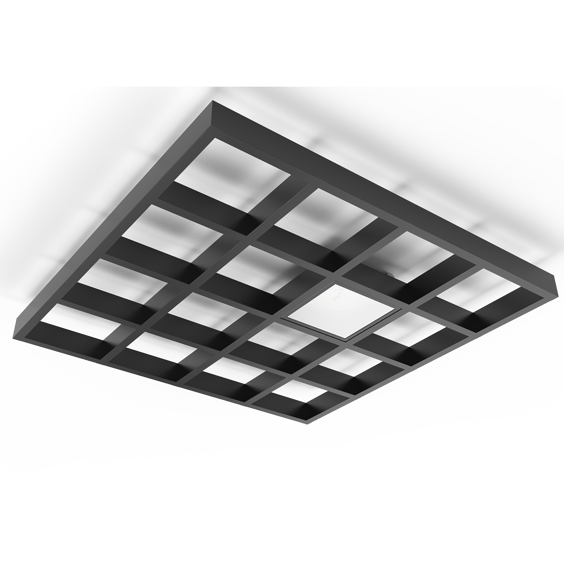

Grilliato
Recessed Concept Ceiling Luminary
Optics
Opal Diffuser
Luminous Flux
1170 lm / 630 lm / 990 lm
Consumption Power
11 W / 13 W / 7 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
100K
Colour Options
RAL 9005
RAL 9010
Product Features
- Luminaire Group Concept Ceiling
- Mounting Type Recessed
- Luminary Color RAL 9005 - RAL 9010
- Housing Aluminum DKP Sheet
- Optics Opal Diffuser
- Electrical Protection Class CLASS II
- Operating Temperature -20°C / +40°C
- Luminous Flux 1170 lm / 630 lm / 990 lm
- Consumption Power 11 W / 13 W / 7 W
- Luminaire Efficiency 90 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >100.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit

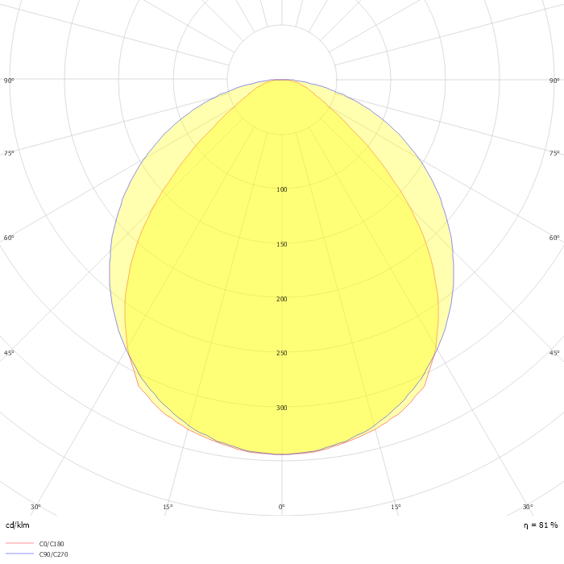

Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| GRL 010 004 007B 8040 10 99 OP 20 00 | 7 | 630 | 4000 | 180° Opal Diffuser | 104x104x62 |
|
| GRL 010 004 011B 8040 10 99 OP 20 00 | 11 | 990 | 4000 | 180° Opal Diffuser | 104x104x62 |
|
| GRL 010 004 013B 8040 10 99 OP 20 00 | 13 | 1170 | 4000 | 180° Opal Diffuser | 104x104x62 |
|
| GRL 015 004 007B 8040 10 99 OP 20 00 | 7 | 630 | 4000 | 180° Opal Diffuser | 154x154x69 |
|
| GRL 015 004 011B 8040 10 99 OP 20 00 | 11 | 990 | 4000 | 180° Opal Diffuser | 154x154x69 |
|
| GRL 015 004 013B 8040 10 99 OP 20 00 | 13 | 1170 | 4000 | 180° Opal Diffuser | 154x154x69 |
|
