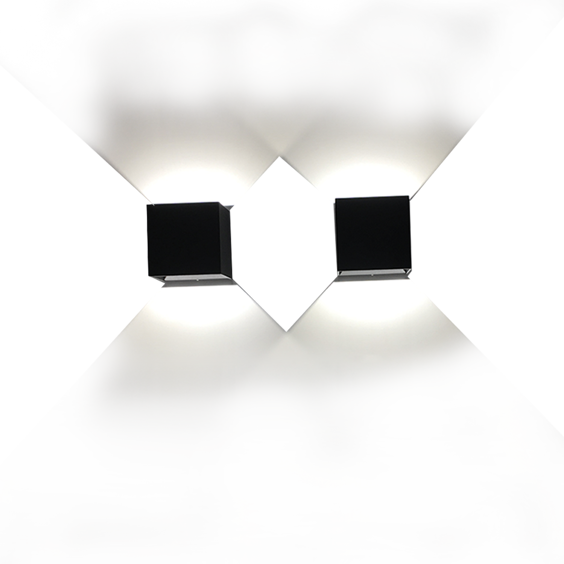

Sisa S & M
Surface Mounted Wall Mount Luminary
Optics
Opal Diffuser
Luminous Flux
520 lm / 780 lm
Consumption Power
4 W / 6 W
Light Color Temperature (CCT)
2700K/3000K/4000K/6500K
220V 240V
IP 20
70K
Product Features
- Luminaire Group Wall Mount
- Mounting Type Surface Mounted
- Housing DKP Sheet
- Optics Opal Diffuser
- Light Source LED
- Electrical Protection Class CLASS II
- IP 20
- Operating Temperature -20°C / +40°C
- Luminous Flux 520 lm / 780 lm
- Consumption Power 4 W / 6 W
- Luminaire Efficiency 130 lm/W
- Color Rendering (CRI) >80
- Light Color Temperature (CCT) 2700K/3000K/4000K/6500K
- Color Tolerance < 3 SDCM
- Driver Type On/Off
- Driver Brand Tridonic
- LED Brand Samsung
- Input Voltage / Frequency 220-240 V AC 50/60 Hz
- Power Factor >0.9
- Surge 1kV
- THD (AKIM) >%20
- LED life >70.000 hours
- Option On-Off / Dali / 1-10V / With Emergency Kit
Optics
Dimensions
Product Variations
| Product Code | Power (W) | Luminous Flux (LM) | CCT (K) | Optics | Dimensions (mm) | Datasheet |
|---|---|---|---|---|---|---|
| SIS 010 010 004D 8040 10 99 OP 20 00 | 4 | 520 | 4000 | 120° Opal Diffuser | 120x120x |
|
| SIS 012 012 006D 8040 10 99 OP 20 00 | 6 | 780 | 4000 | 120° Opal Diffuser | 120x120x |
|
Download
